SL Series

Diablo SL

Diablo SL Three-way Precision Monitor

This is a very flexible loudspeaker designed for use in small to medium size rooms for home cinema or HiFi, as well as being designed for multi-room applications in kitchens, bedrooms, studies etc. The Diablo SL is a high SPL speaker, and for optimal performance it should be partnered with an Artcoustic subwoofer.



Operating Range: 60 Hz (-3dB) to 40kHz
Nominal Beamwidth: Horizontal 90° Vertical 90°
Axial Sensitivity (whole space SPL): LF/MF-HF 94 dB
Input Impedance: Nominal Minimum (Mono)  4 ohms
Recommended High Pass Filter => 80 Hz, 24 dB/octave
Maximum Power Handling: 60 Watt
Calculated Axial Output Limit (whole space SPL) Average Peak LF/MF-HF 109dB
Weight: 4 kg
Dimensions: H: 360 W: 270 D: 67 mm
Cabinet: Black, WhiteRAL, NCS, Tikkurila, Gloss
Screen: Black, WhiteRAL, NCS, Tikkurila, Artcoustic Art Gallery


Monitor SL perspectiv wo screen.jpg

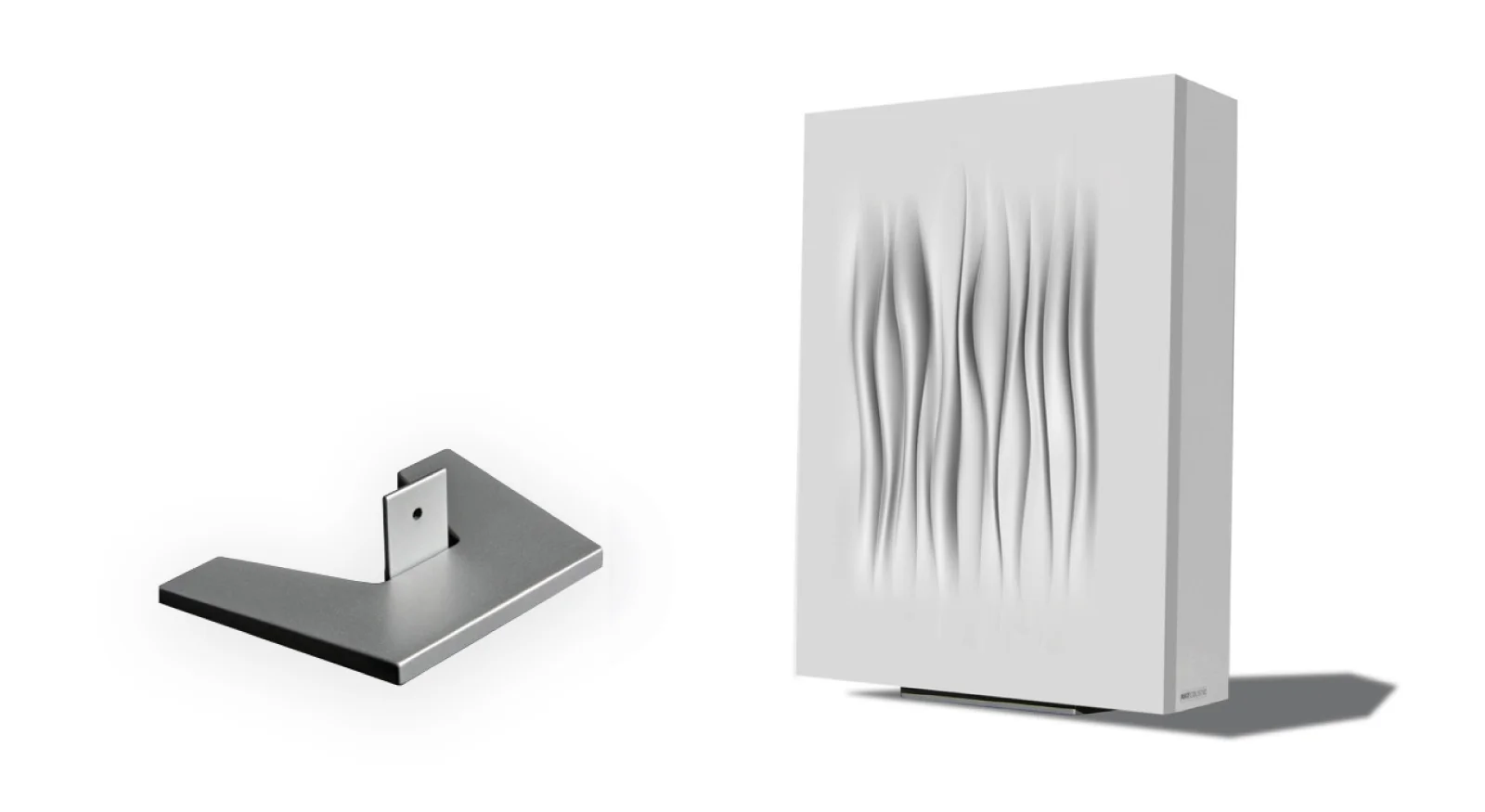

Diablo SL on Base Plate



Base Plate for Diablo SL
