Congratulations to the team at Rayleigh HiFi, UK, for November's incredible Installation Of The Month.


Working closely with Artcoustic, and following site visits, demonstrations at our Chelmsford showroom, technical designs and 3D renders, the end result is breathtaking.

This is one of the most impressive cinema rooms we've seen, and we congratulate the whole team at Rayleigh HiFi.

Amazing work, well done!

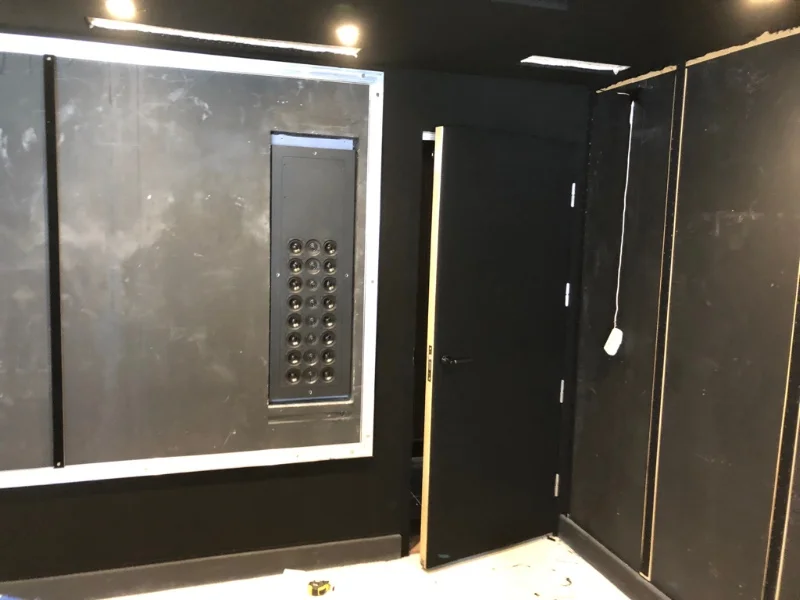

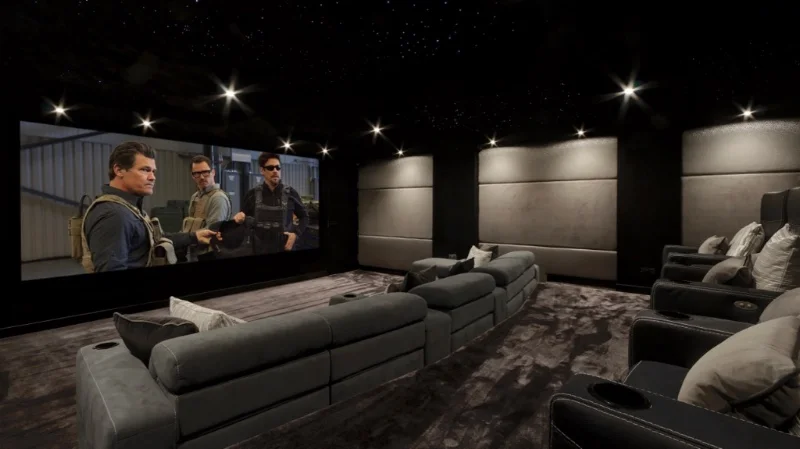

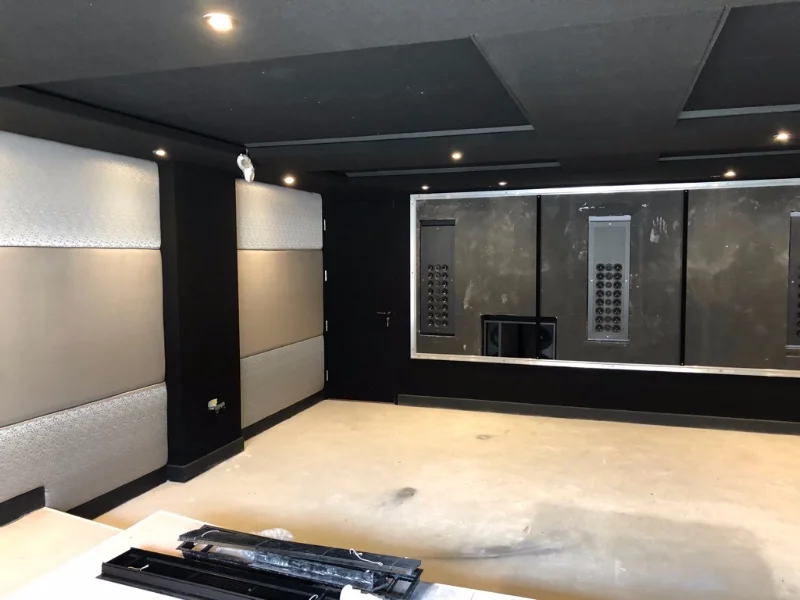

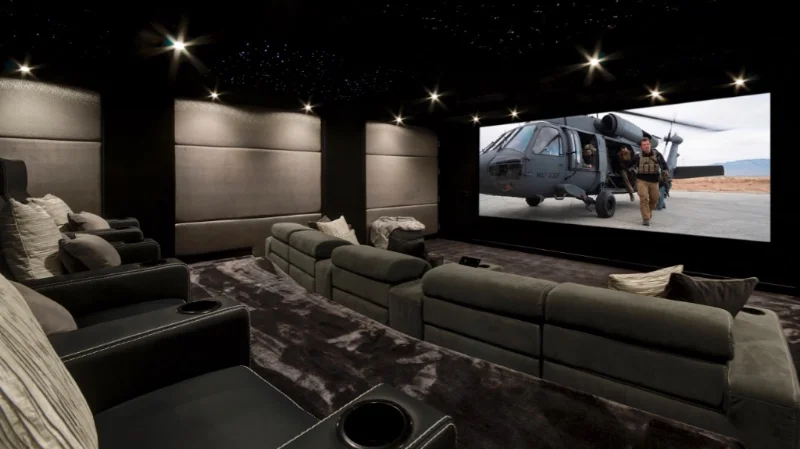

The 150" 2.40:1 ratio acoustically transparent screen covers the Spitfire 16-8 LCR and PS6 subwoofer.


The system is a Dolby Atmos 7.1.4 configuration, and delivers an incredibly immersive experience. All the speakers are, crucially, timbre matched throughout. Viewing angles, and loudspeaker locations are all carefully calculated to ensure the very best performance possible.

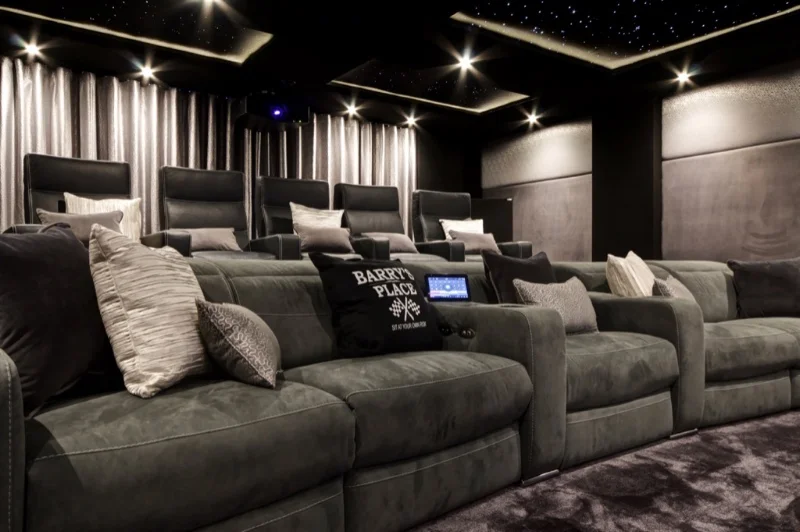

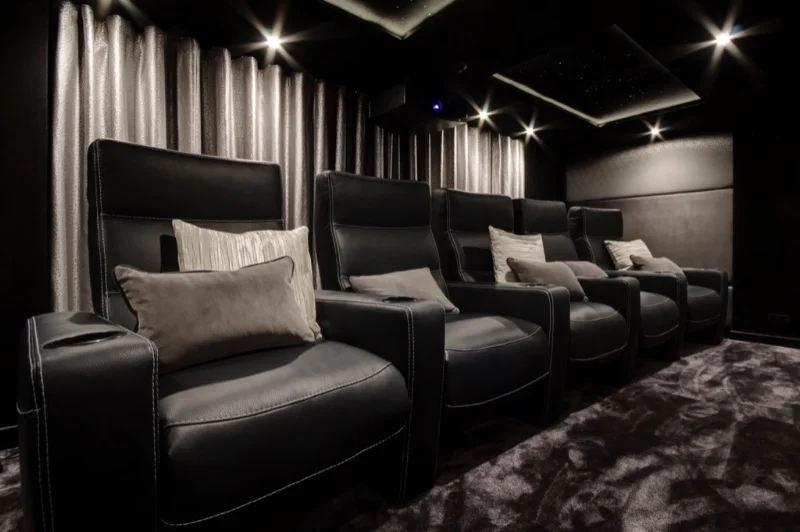

Architect SL 4-2 and SL Diablo make up the surrounds and overheads, with Cineca seating adding a touch of comfort and luxury to the experience. The Siena model is used on the back row, with the Modena on the front row.


Lots of planning and hard work by the team at Rayleigh HiFi made it possible for this room to come together superbly. Well done to everyone involved, it's one of the finest cinemas rooms we've had the pleasure to work on.


Spitfire 16-8

Artcoustic's modular range enables the correct loudspeakers to be specified based on the correct technical requirements. Dedicated cinemas should always be designed to the industry standards of 105db per speaker in the listening position, with an aim for higher if possible to allow for EQ and room treatment. The Spitfire 16-8 will play 124db and is capable of 108db at a distances over 6m, so delivers plenty of power and headroom here.

READ MORE ABOUT SPEAKER


Performance PS6 Subwoofer

Serious cinemas have serious subwoofers! The Performance PS6 was chosen here, with 6 x 10" bass units, and weighing over 70kg. We advise having subwoofers that are capable of at least 10db output more than the main speakers, with 136db output, and a frequency response down to 15Hz, this was the perfect complement to the 16-8s.
