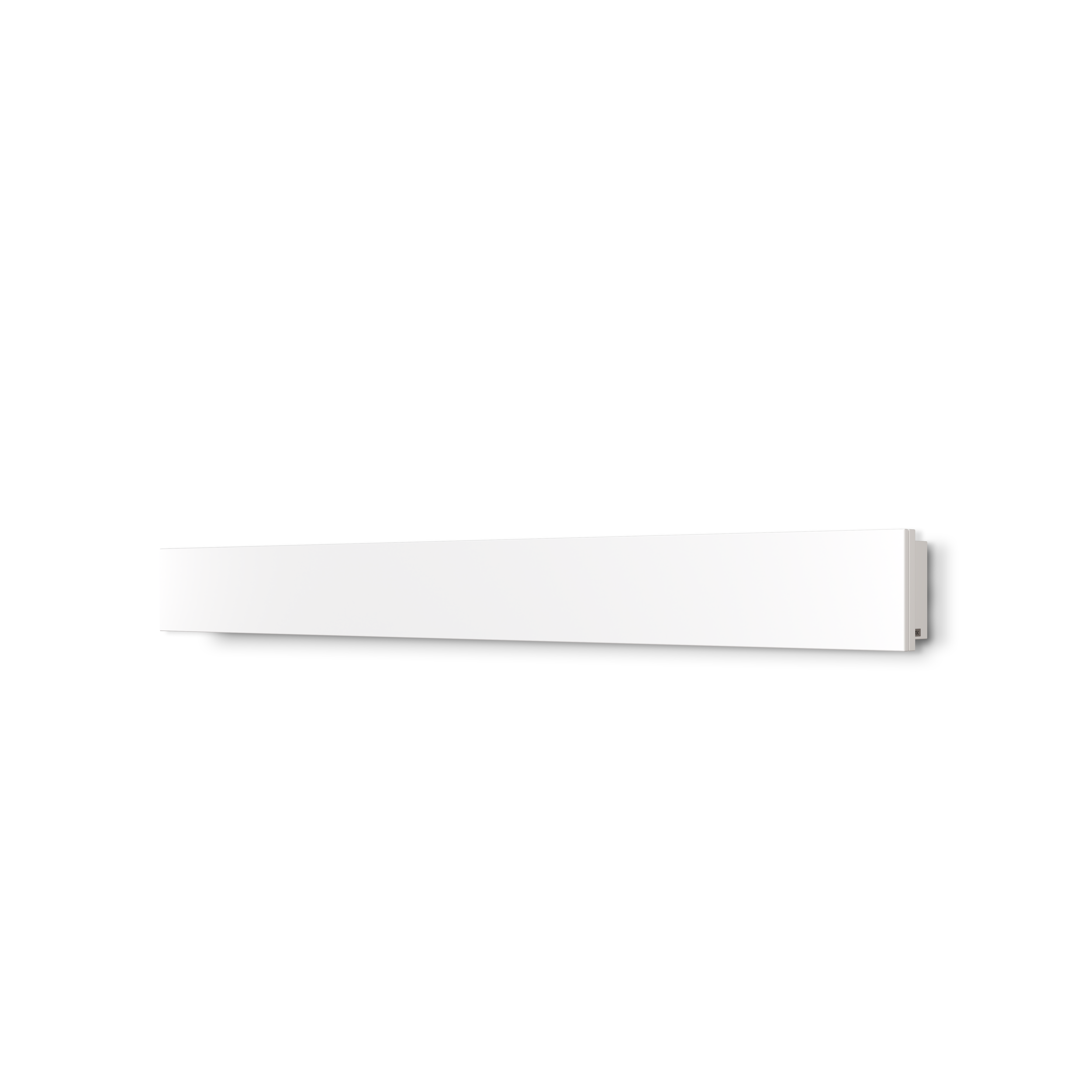

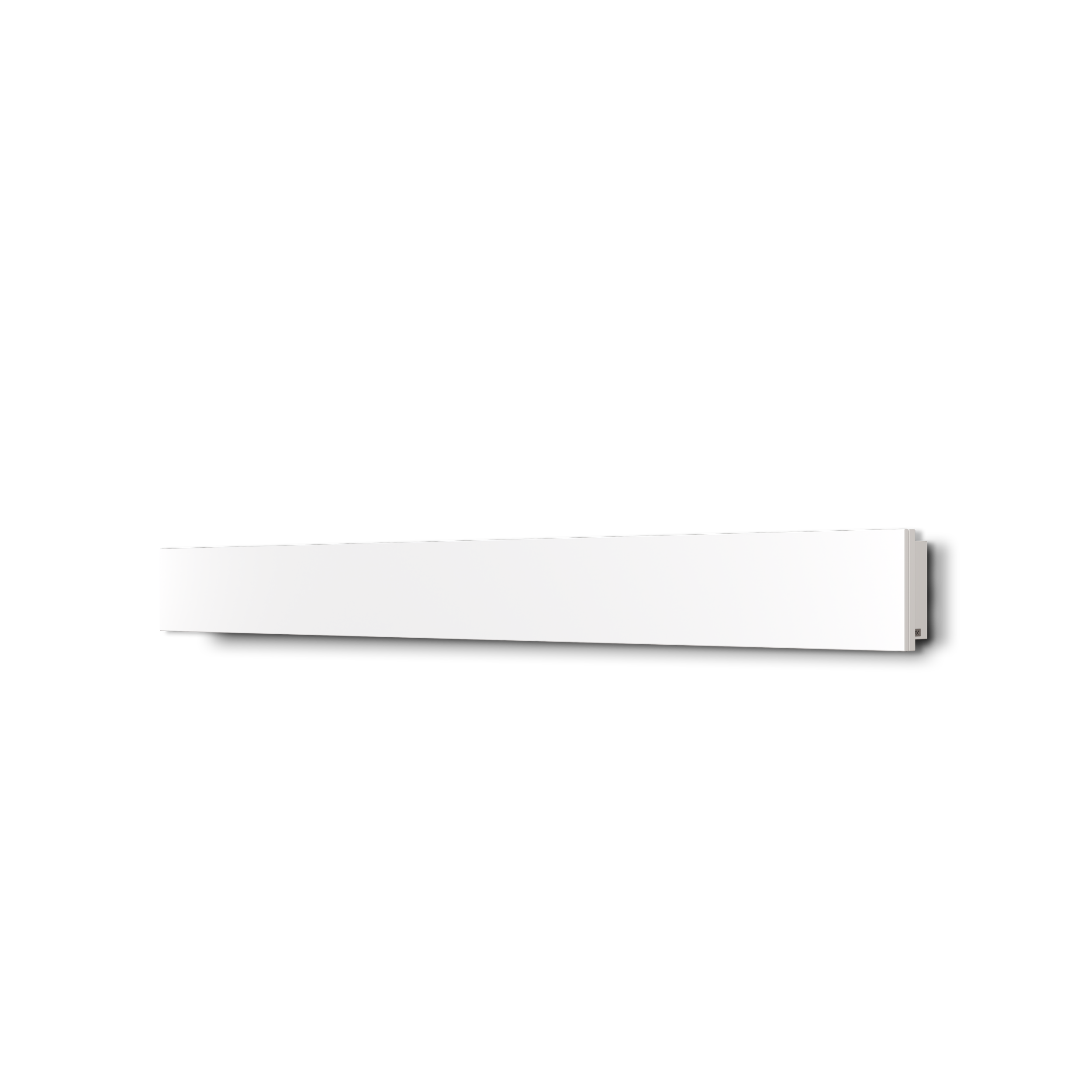

SL C-4-1 Soundbar

£0.00

A purpose-built centre channel with wide dispersion, high SPL and full custom finishes

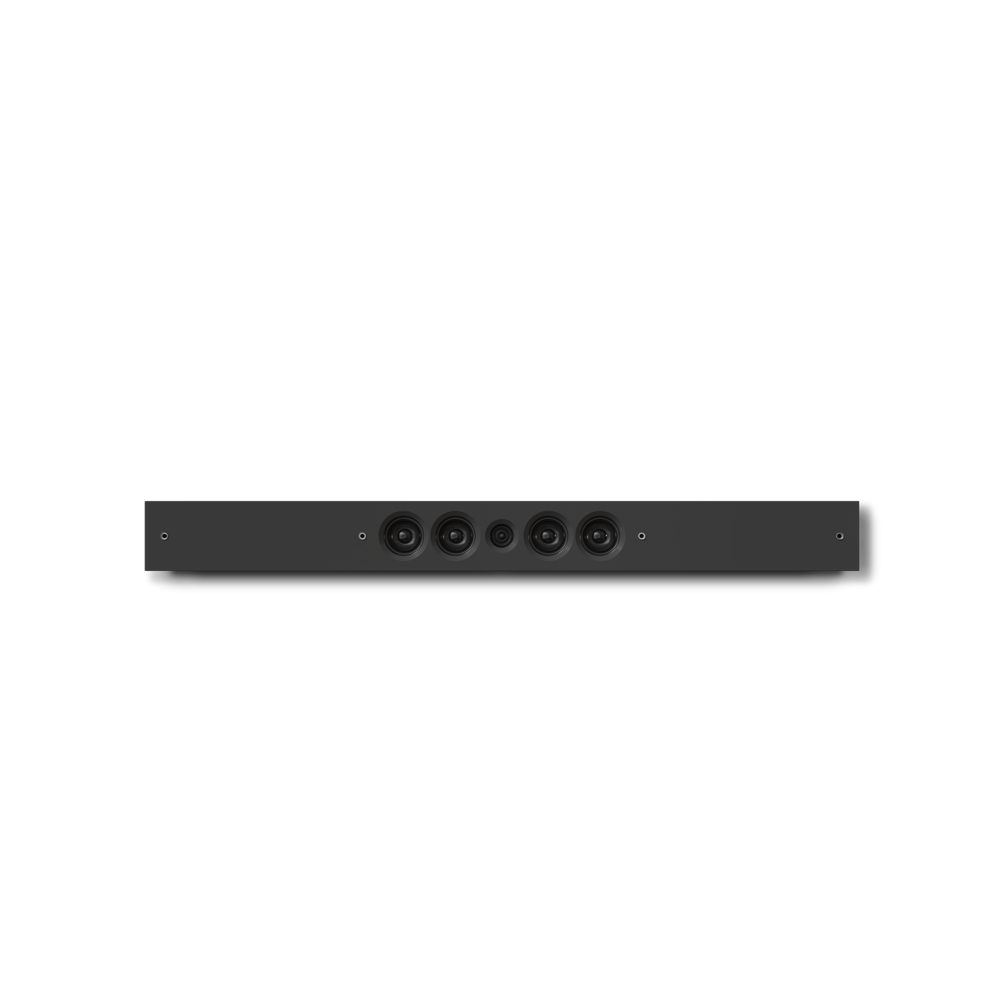

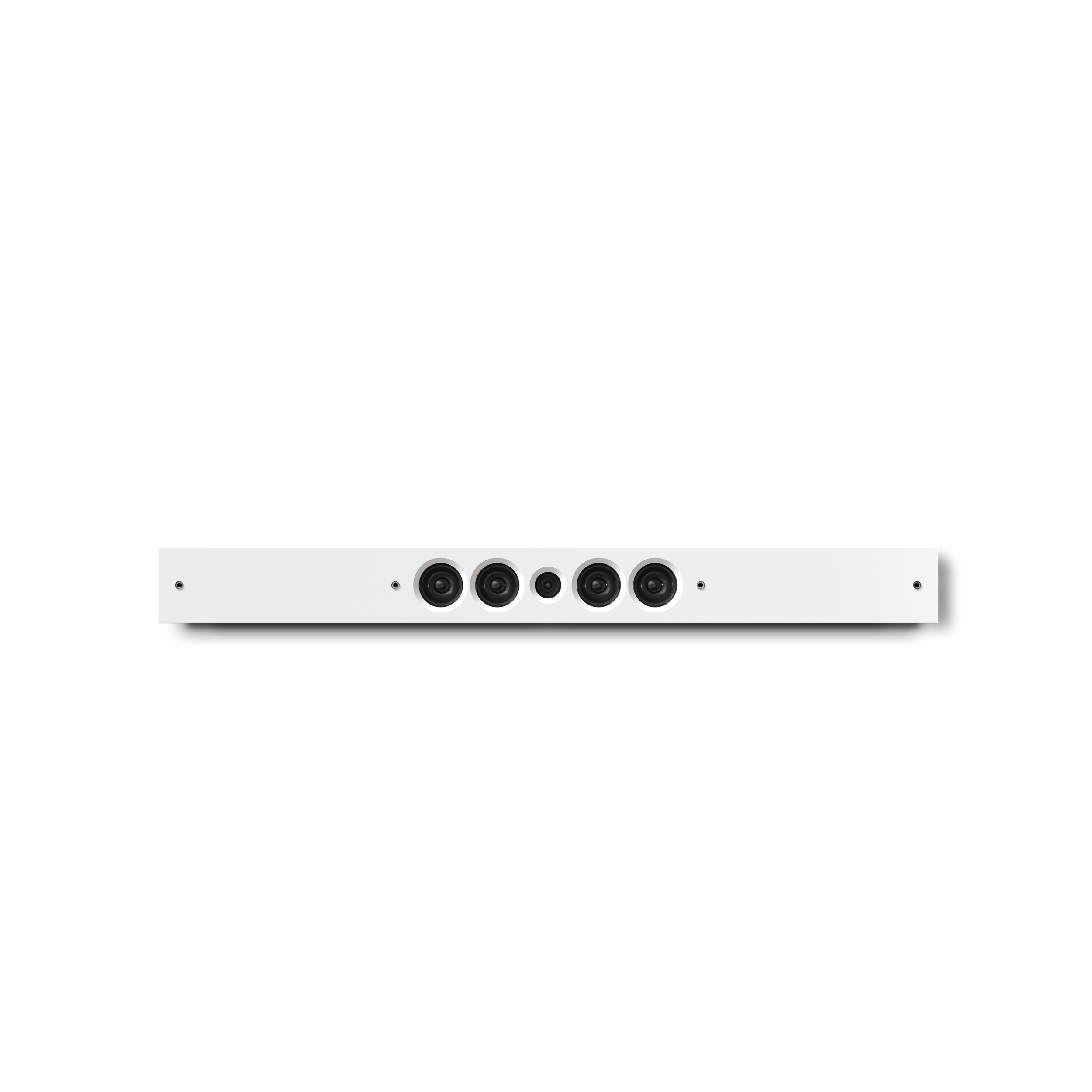

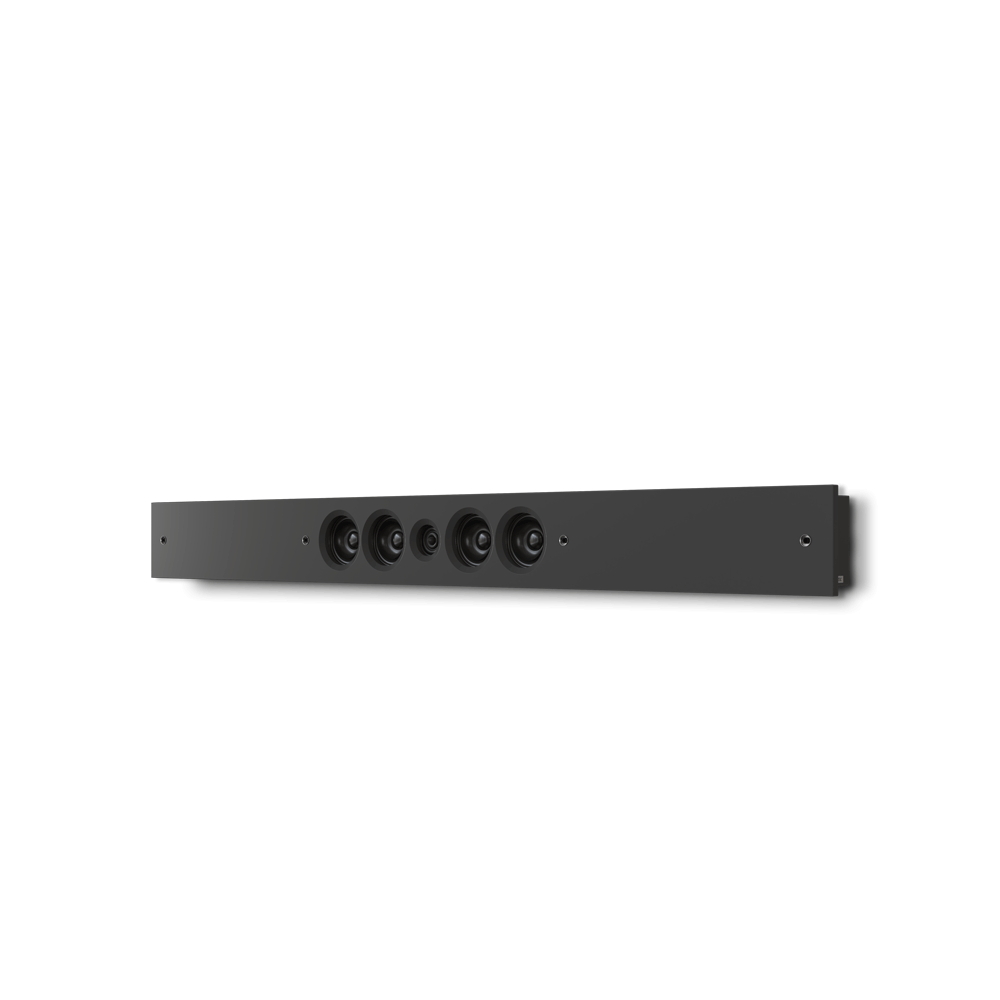

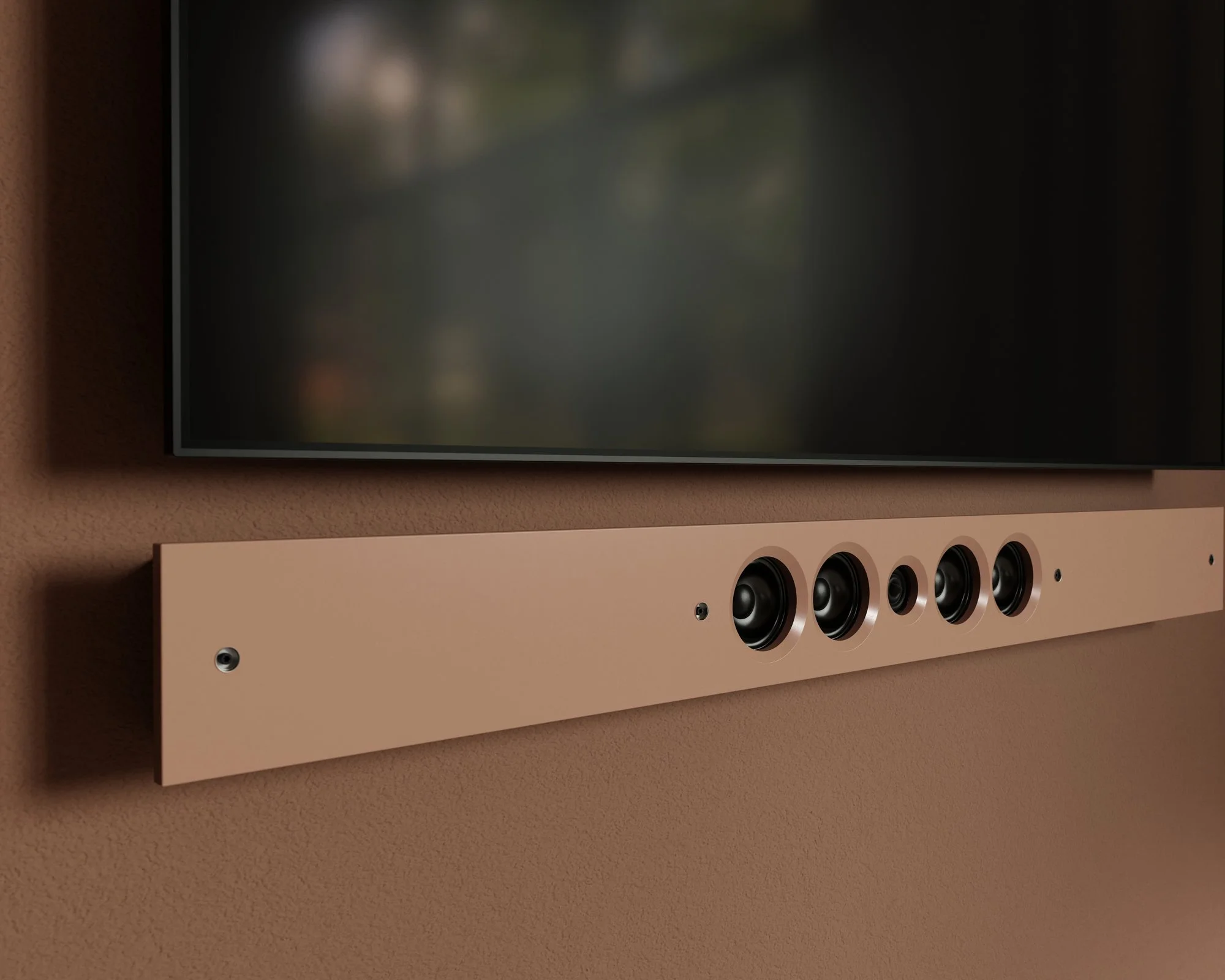

At the heart of the C-4-1 Soundbar is a sophisticated five-driver array: four 3" long-throw midrange units flank a 2" high-definition ring-radiator tweeter. This layout delivers excellent speech intelligibility with pinpoint vocal accuracy and minimal distortion, even at elevated listening levels. High-frequency performance is notably extended, with response up to 40 kHz and a sensitivity around 98 dB (1W/1m, ±2 dB), giving you clean output and effortless dynamics from a slim enclosure.

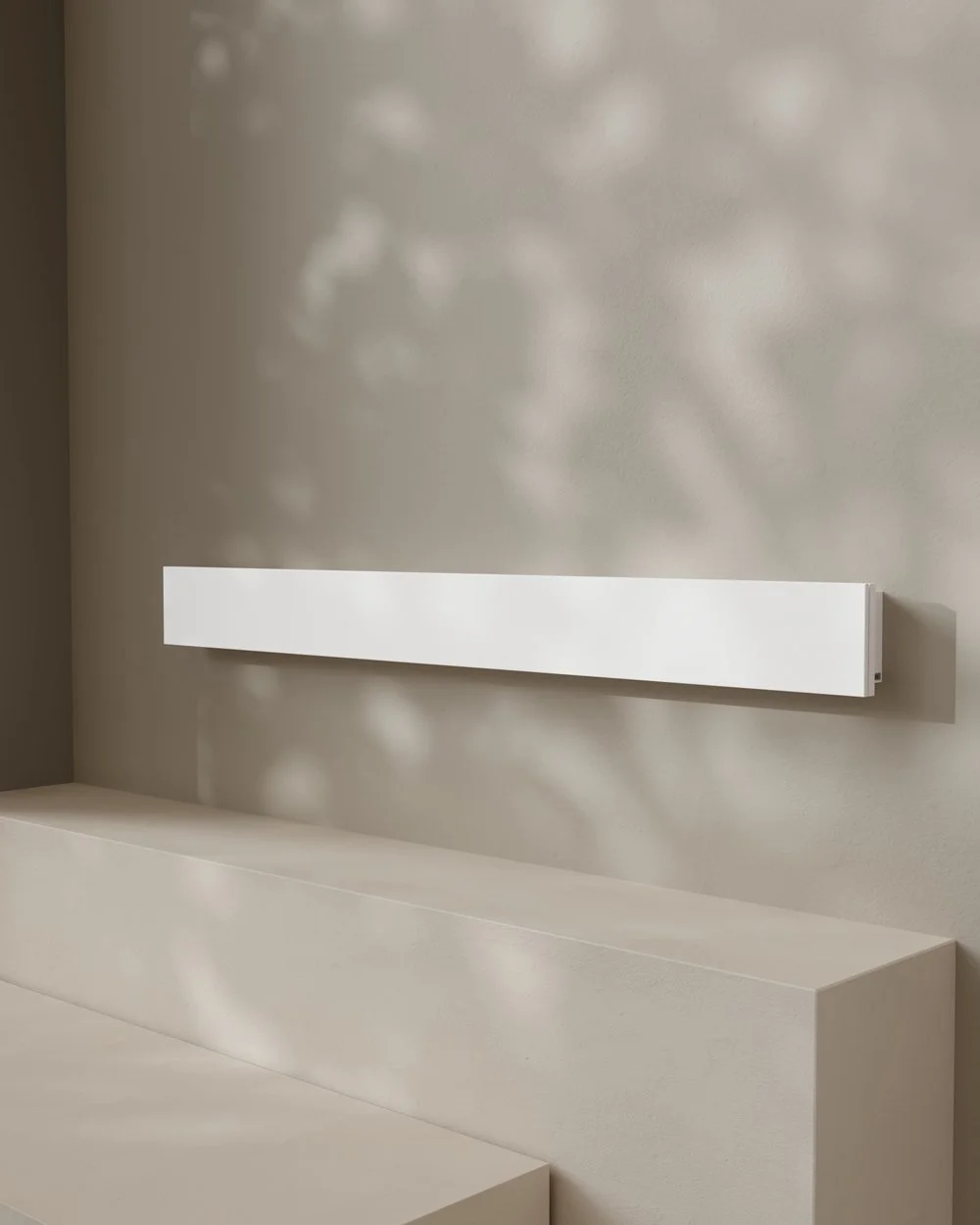

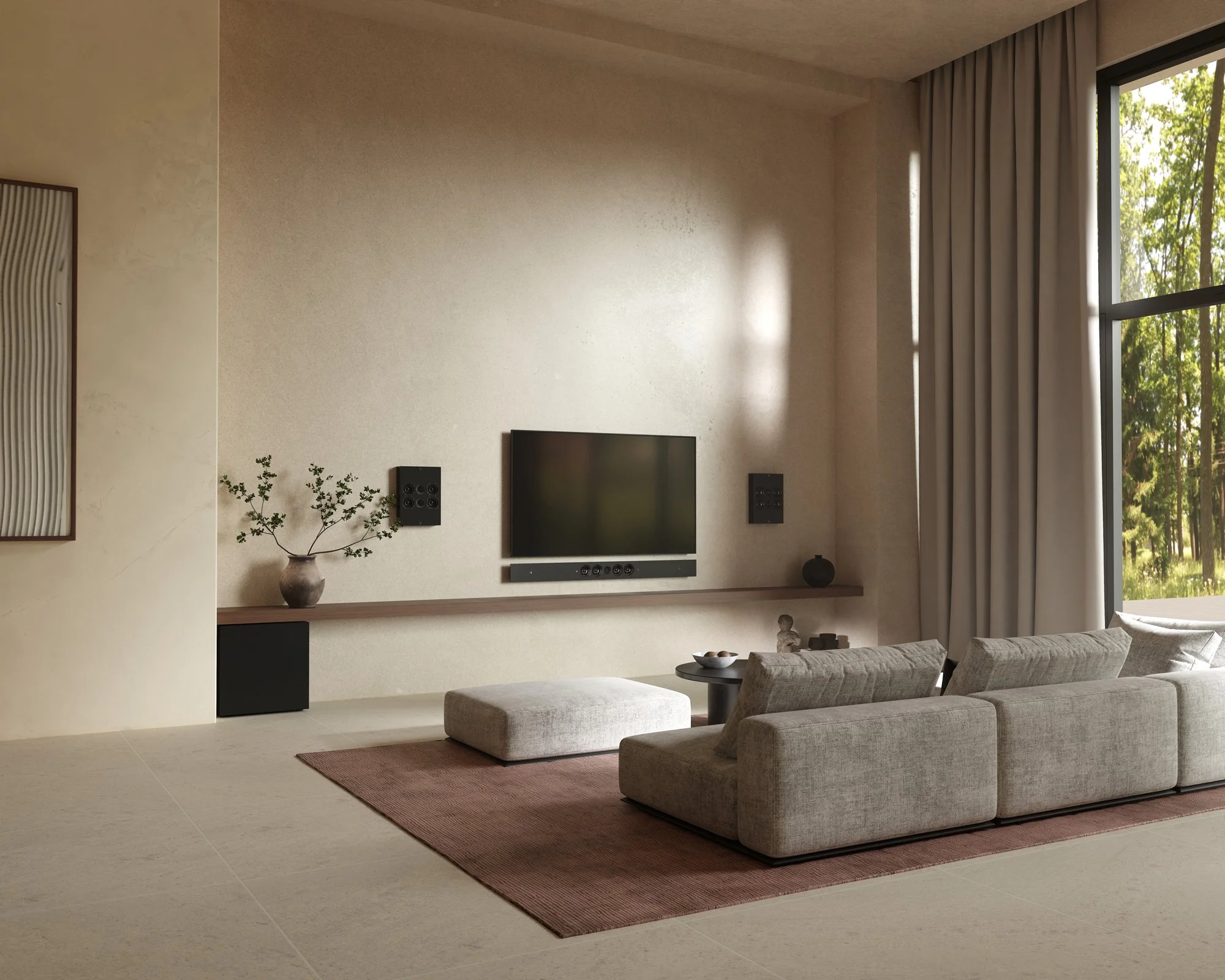

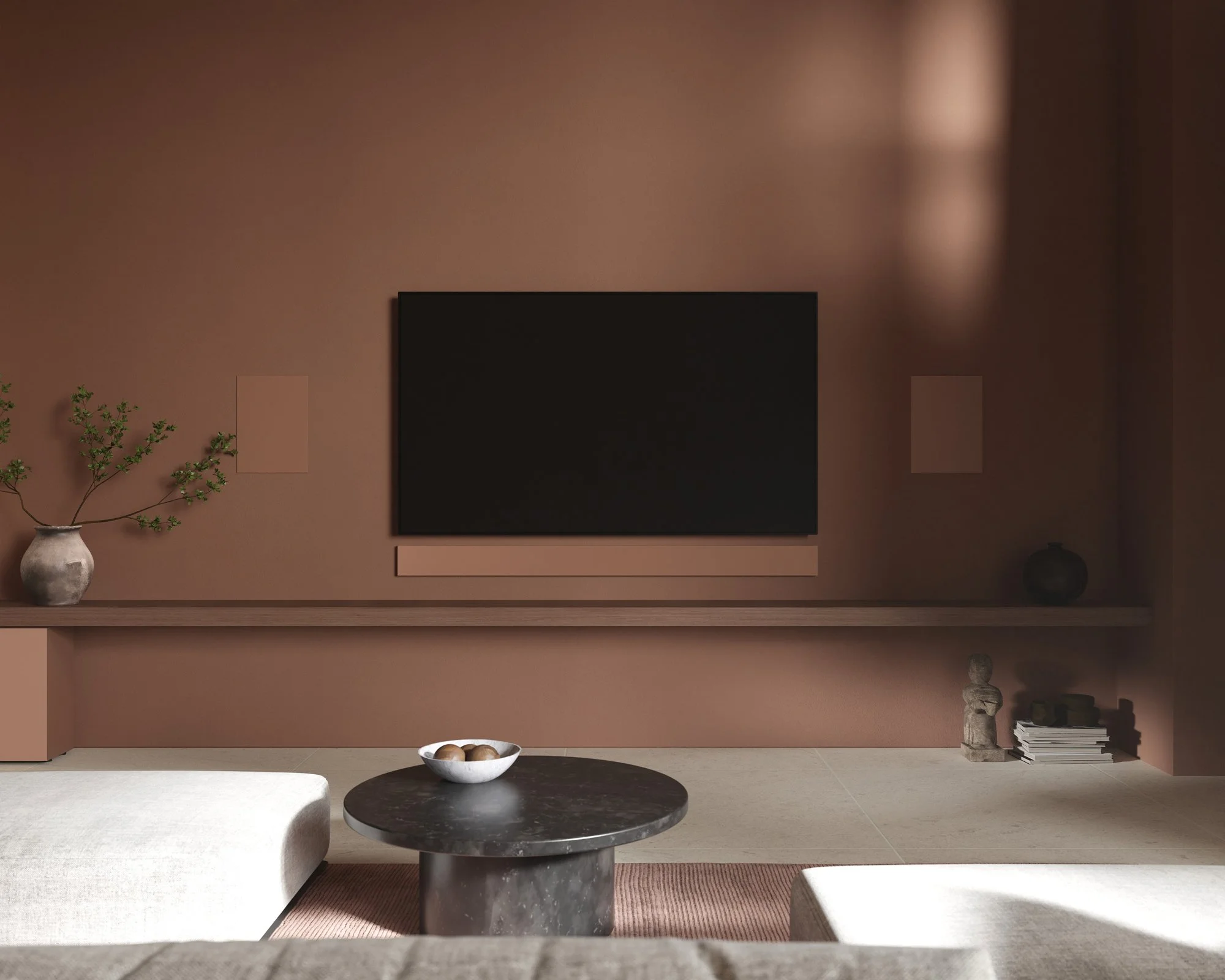

While conceived as a compact centre for home cinema, the C-4-1 is equally comfortable beyond the theatre. Rotate it vertically and it becomes a refined on-wall loudspeaker for media rooms and living spaces—ideal wherever the brief demands both performance and a discreet footprint.

A purpose-built centre channel with wide dispersion, high SPL and full custom finishes

At the heart of the C-4-1 Soundbar is a sophisticated five-driver array: four 3" long-throw midrange units flank a 2" high-definition ring-radiator tweeter. This layout delivers excellent speech intelligibility with pinpoint vocal accuracy and minimal distortion, even at elevated listening levels. High-frequency performance is notably extended, with response up to 40 kHz and a sensitivity around 98 dB (1W/1m, ±2 dB), giving you clean output and effortless dynamics from a slim enclosure.

While conceived as a compact centre for home cinema, the C-4-1 is equally comfortable beyond the theatre. Rotate it vertically and it becomes a refined on-wall loudspeaker for media rooms and living spaces—ideal wherever the brief demands both performance and a discreet footprint.




Specifications

  • C-4-1 SOUNDBAR M 1222

    Frequency range 80 Hz – 40 kHz
    Usable LF response 77 Hz -6db
    Coverage window 90 - 90
    Rated impedance 8 Ohms
    Sensitivity @ 1 watt 98 dB
    Power handling 120 W @ 31 Vrms
    Maximum continuous SPL @ 1 meter 109 dB
    Power draw 11 W 9 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 115 dB
    Transducers MF – 3” woofer (x 4) HF – 1.5” woofer (x 1)
    Enclosure Medium density Fiber board

    Weight 5.5 kg
    Dimensions H 120 W 1222 D 81 mm

    C-4-1 SOUNDBAR L 1441

    Frequency range 80 Hz – 40 kHz
    Usable LF response 77 Hz -6db
    Coverage window 90 - 90
    Rated impedance 8 Ohms
    Sensitivity @ 1 watt 98 dB
    Power handling 120 W @ 31 Vrms
    Maximum continuous SPL @ 1 meter 109 dB
    Power draw 11 W 9 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 115 dB
    Transducers MF – 3” woofer (x 4) HF – 1.5” woofer (x 1)
    Enclosure Medium density Fiber board

    Weight 6 kg
    Dimensions H 120 W 1441 D 81 mm

    C-4-1 SOUNDBAR XL 1711

    Frequency range 80 Hz – 40 kHz
    Usable LF response 77 Hz -6db
    Coverage window 90 - 90
    Rated impedance 8 Ohms
    Sensitivity @ 1 watt 98 dB
    Power handling 120 W @ 31 Vrms
    Maximum continuous SPL @ 1 meter 109 dB
    Power draw 11 W 9 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 115 dB
    Transducers MF – 3” woofer (x 4) HF – 1.5” woofer (x 1)
    Enclosure Medium density Fiber board

    Weight 6.5 kg
    Dimensions H 120 W 1711 D 81 mm

  • Colour:

    Cabinet: RAL/NCS, SL Satin

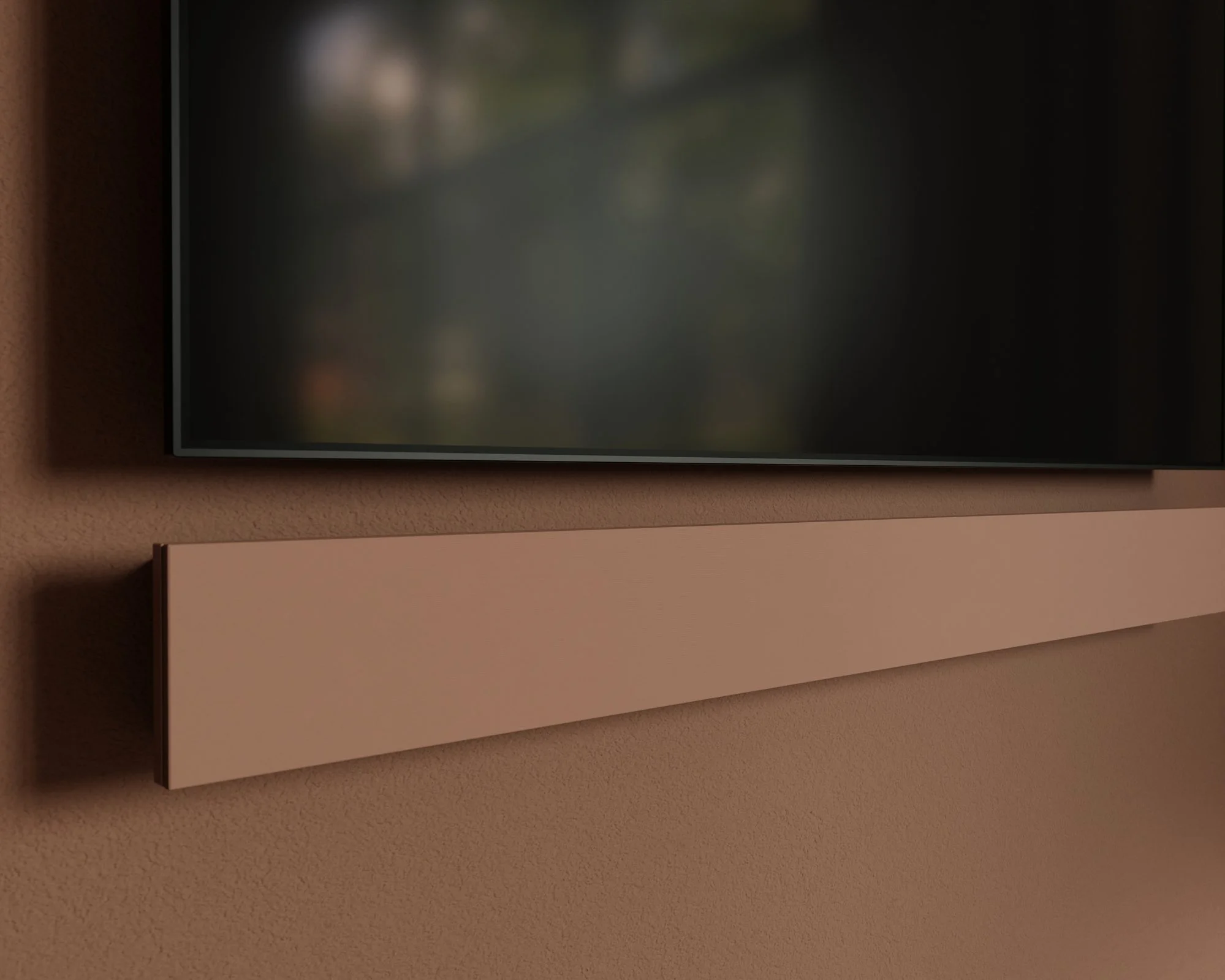

    Screen: RAL/NCS

    Standard cabinet/screen colours are black/white

  • 2D / 3D Files
    Images
    User Manual
    Product Sheet

Get in touch


INSTALLATIONS featuring SL C-4-1

About Soundbars

Artcoustic pioneered the first concept of an all-in-one LCR (left, centre and right) soundbar as far back as 1997. The SL version is an evolution of this classic loudspeaker and is available in four standard versions, with the option to go bespoke. All feature clean, discrete aesthetics with high output timbre-matched performance.
