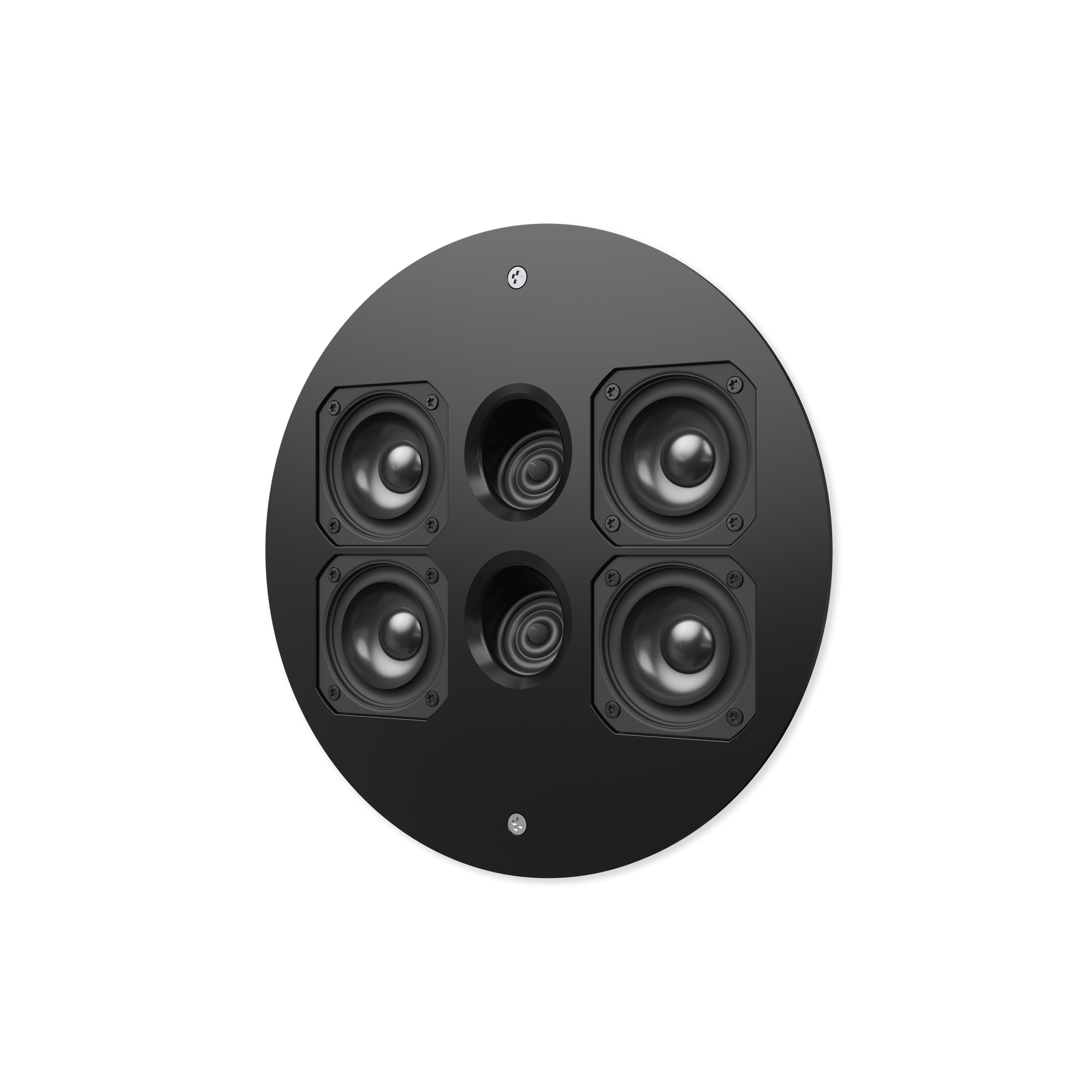

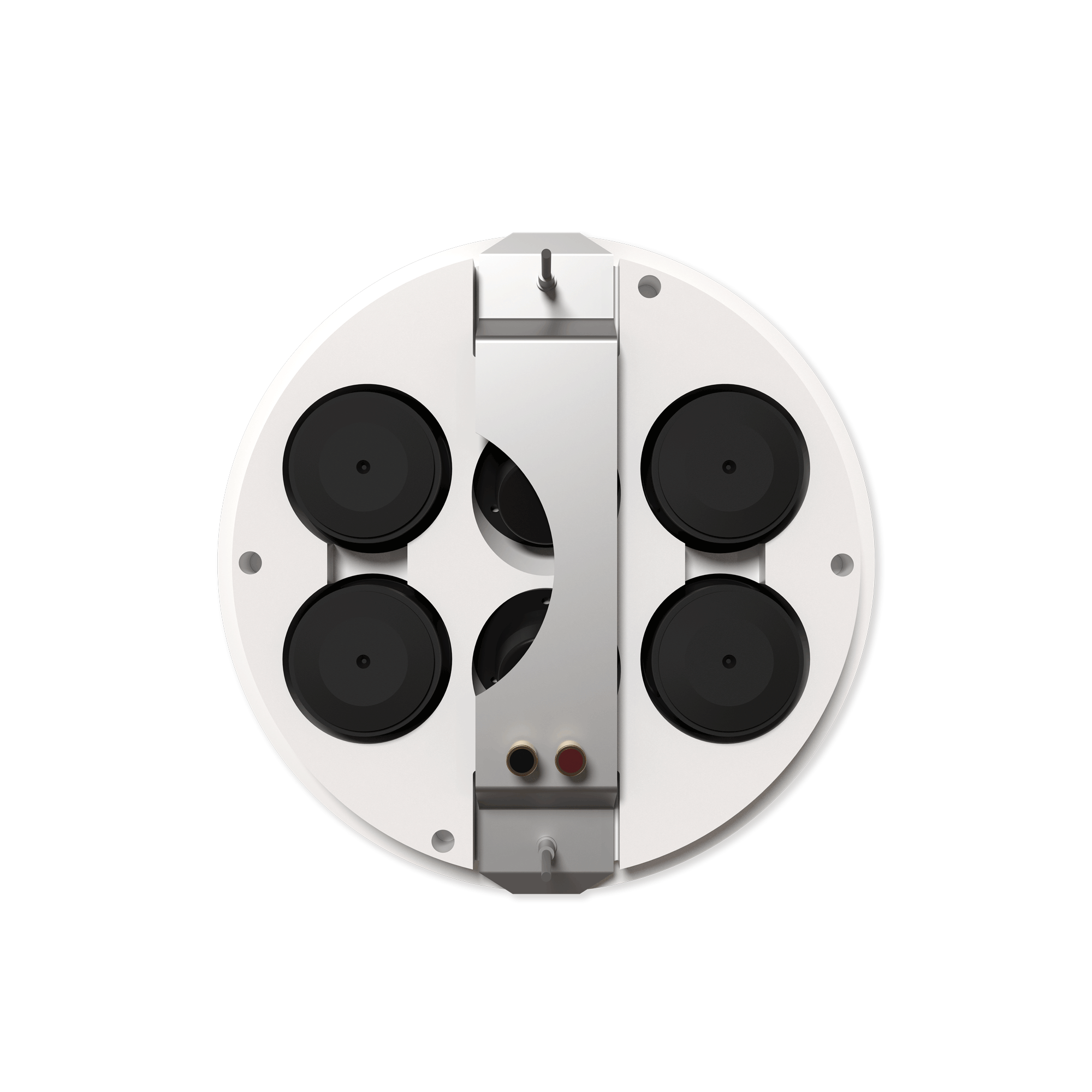

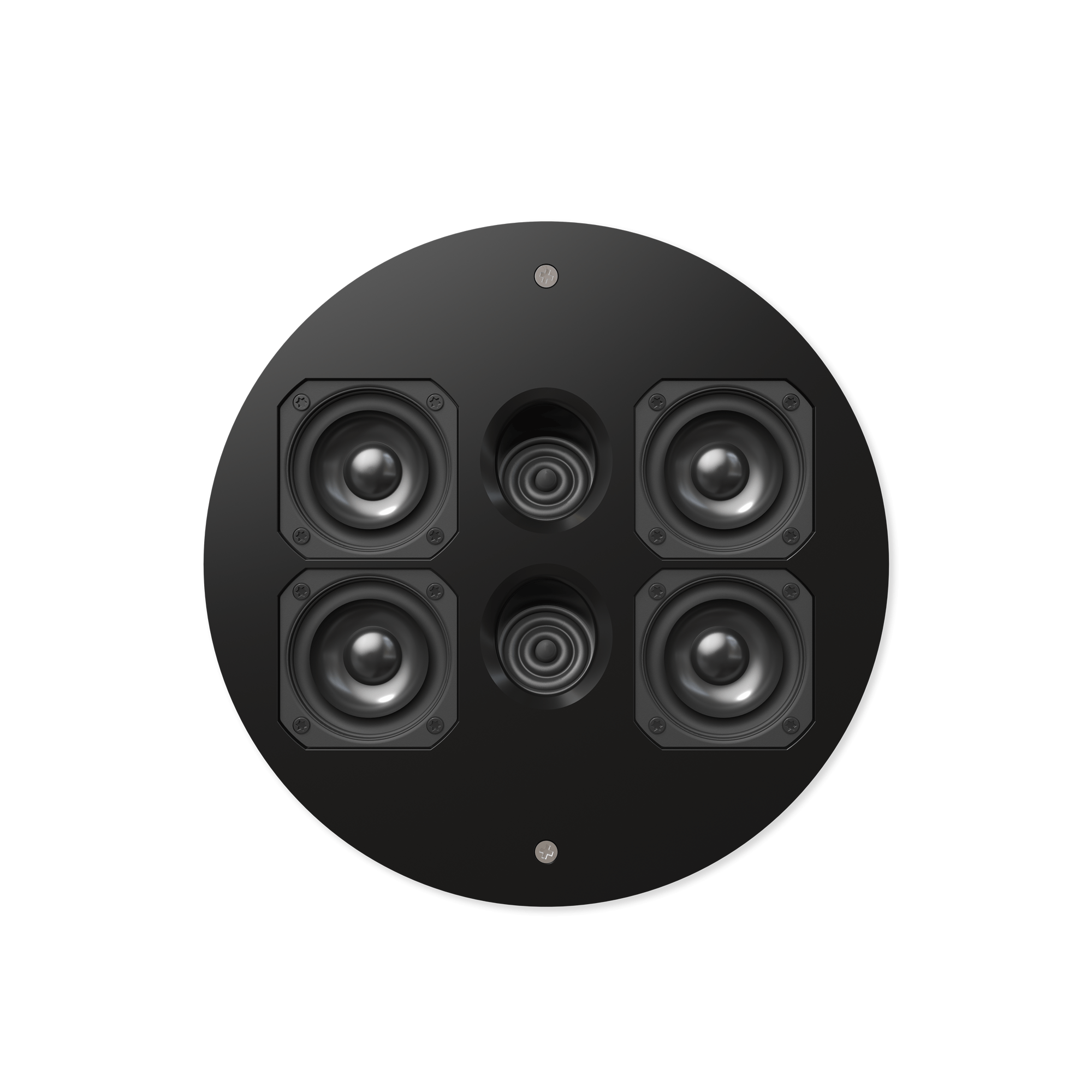

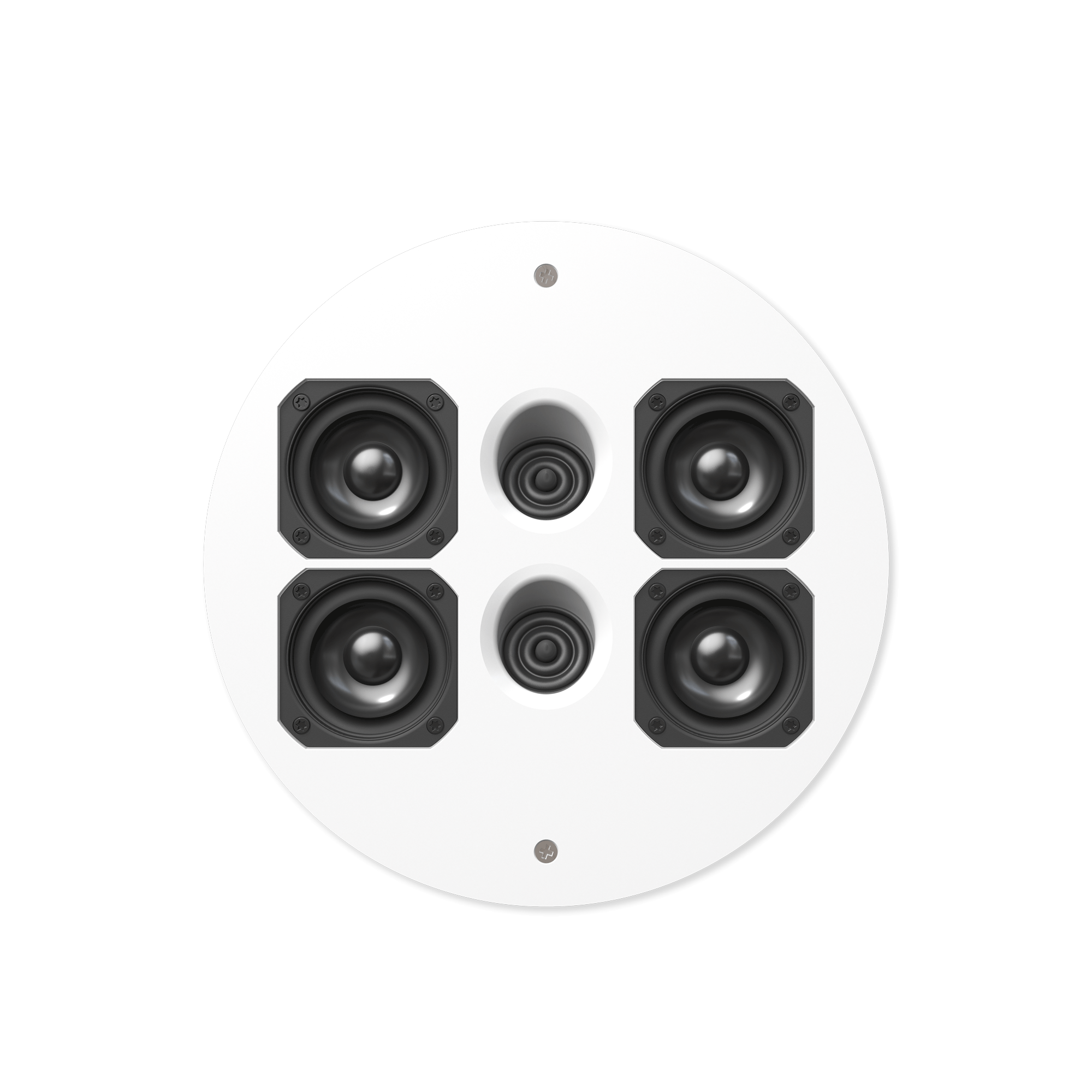

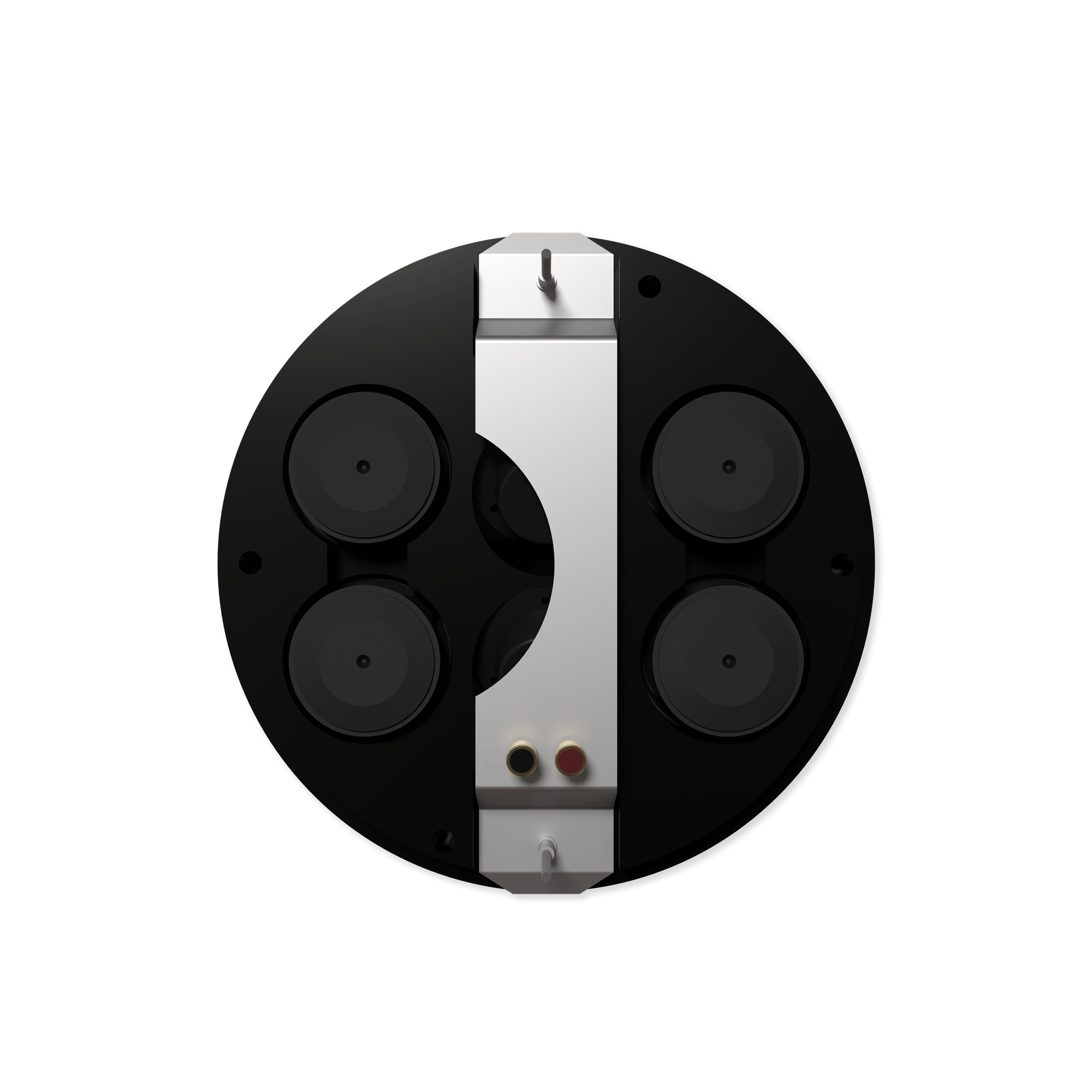

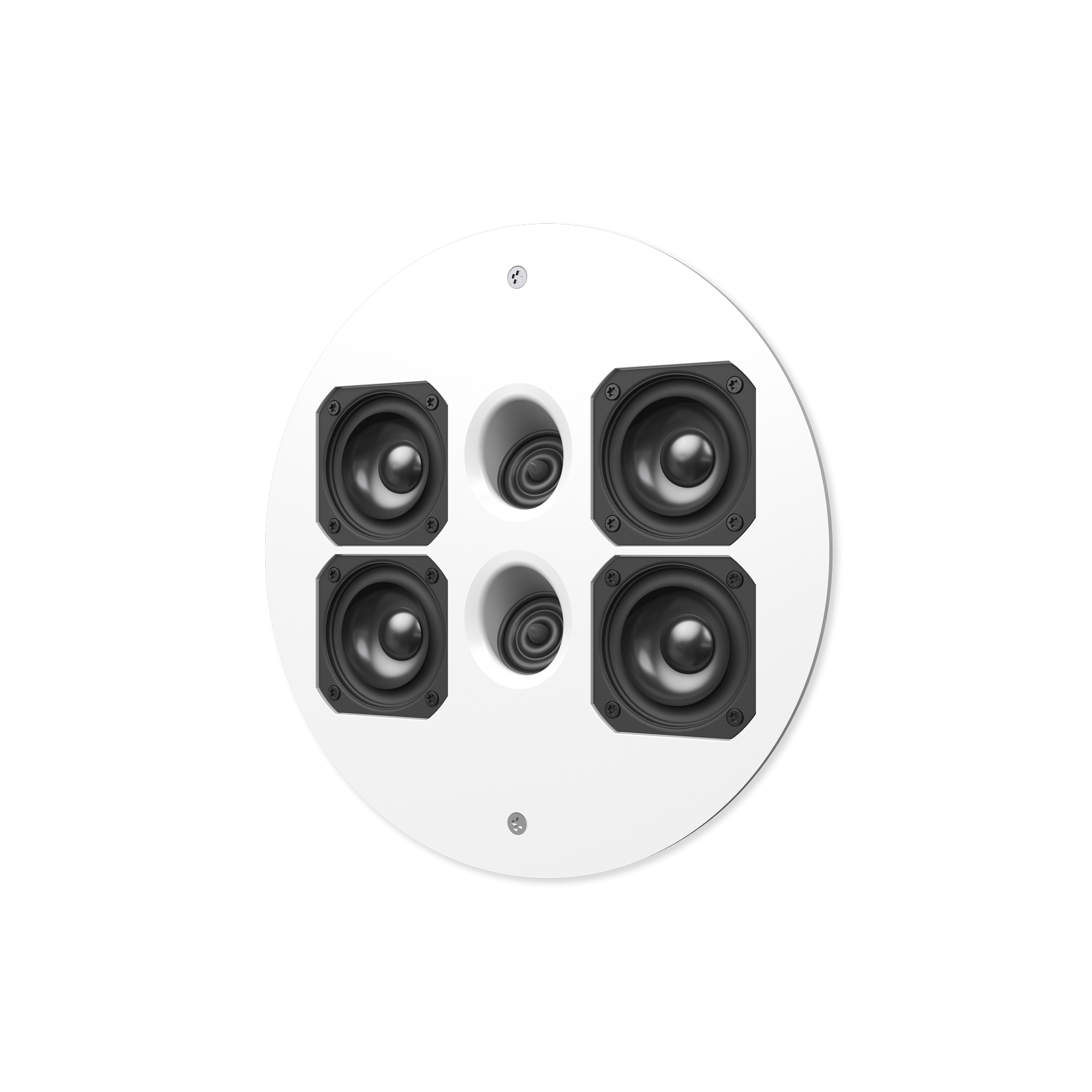

SL Architect 4-2 MKII

£0.00

Architectural Performance Beyond the Cinema

Sharing the same acoustic platform as the Spitfire Cloud, the new SL Architect 4-2 MKII brings identical engineering principles to a broader range of architectural audio applications.

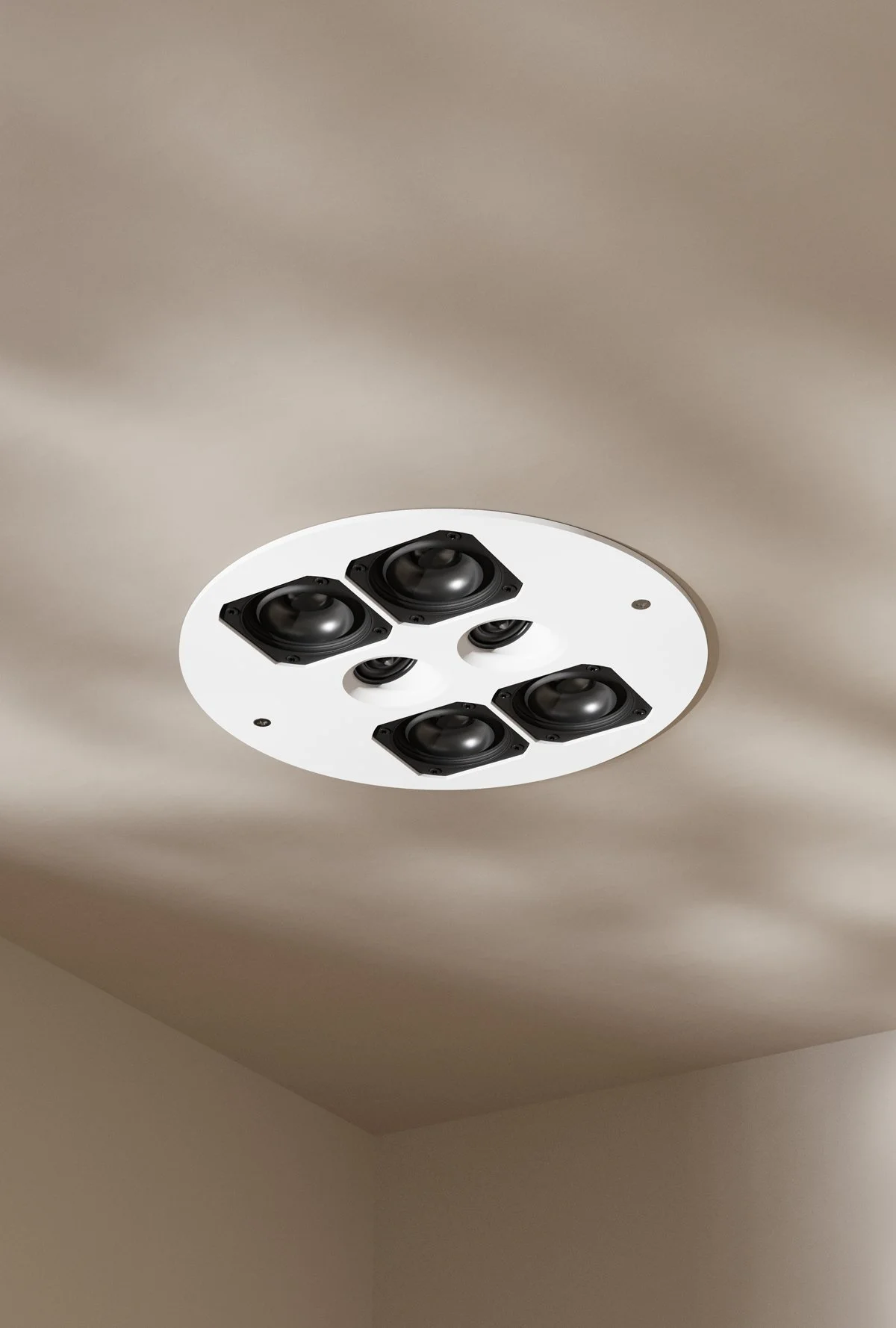

Developed for premium residential and commercial environments, this in-ceiling loudspeaker combines high sensitivity, controlled dispersion and exceptional clarity within an elegant, low-profile in-ceiling design.

Its controlled coverage ensures even sound distribution while reducing unwanted room interaction, resulting in excellent speech intelligibility and remarkably consistent tonal balance throughout the listening area.

The SL Architect 4-2 MKII is ideally suited for:

• Open-plan residential interiors
• Multi-room living environments
• Hospitality projects
• Restaurants, lounges, and retail spaces
• Contemporary architectural and interior design schemes

Its shallow installation depth also makes it particularly valuable for renovation projects and buildings where ceiling void space is limited.

Architectural Performance Beyond the Cinema

Sharing the same acoustic platform as the Spitfire Cloud, the new SL Architect 4-2 MKII brings identical engineering principles to a broader range of architectural audio applications.

Developed for premium residential and commercial environments, this in-ceiling loudspeaker combines high sensitivity, controlled dispersion and exceptional clarity within an elegant, low-profile in-ceiling design.

Its controlled coverage ensures even sound distribution while reducing unwanted room interaction, resulting in excellent speech intelligibility and remarkably consistent tonal balance throughout the listening area.

The SL Architect 4-2 MKII is ideally suited for:

• Open-plan residential interiors
• Multi-room living environments
• Hospitality projects
• Restaurants, lounges, and retail spaces
• Contemporary architectural and interior design schemes

Its shallow installation depth also makes it particularly valuable for renovation projects and buildings where ceiling void space is limited.




Specifications

  • Frequency range 100 Hz to 20 kHz
    Usable LF response 97 Hz (-6 dB)
    Coverage window Horizontal 90°, Vertical 45°
    Sensitivity @ 1 Watt 98 dB
    Power handling 120 Watt
    Maximum continuous SPL @ 1 meter 114 dB
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 120 dB
    Rated Impedance 4 ohms
    Weight: 2.9 kg
    Dimensions: H: 300 W: 300 D: 73 mm

    NB: Please download the user manual for the full specification.

  • Cabinet: Black, White, RAL/NCS Colours

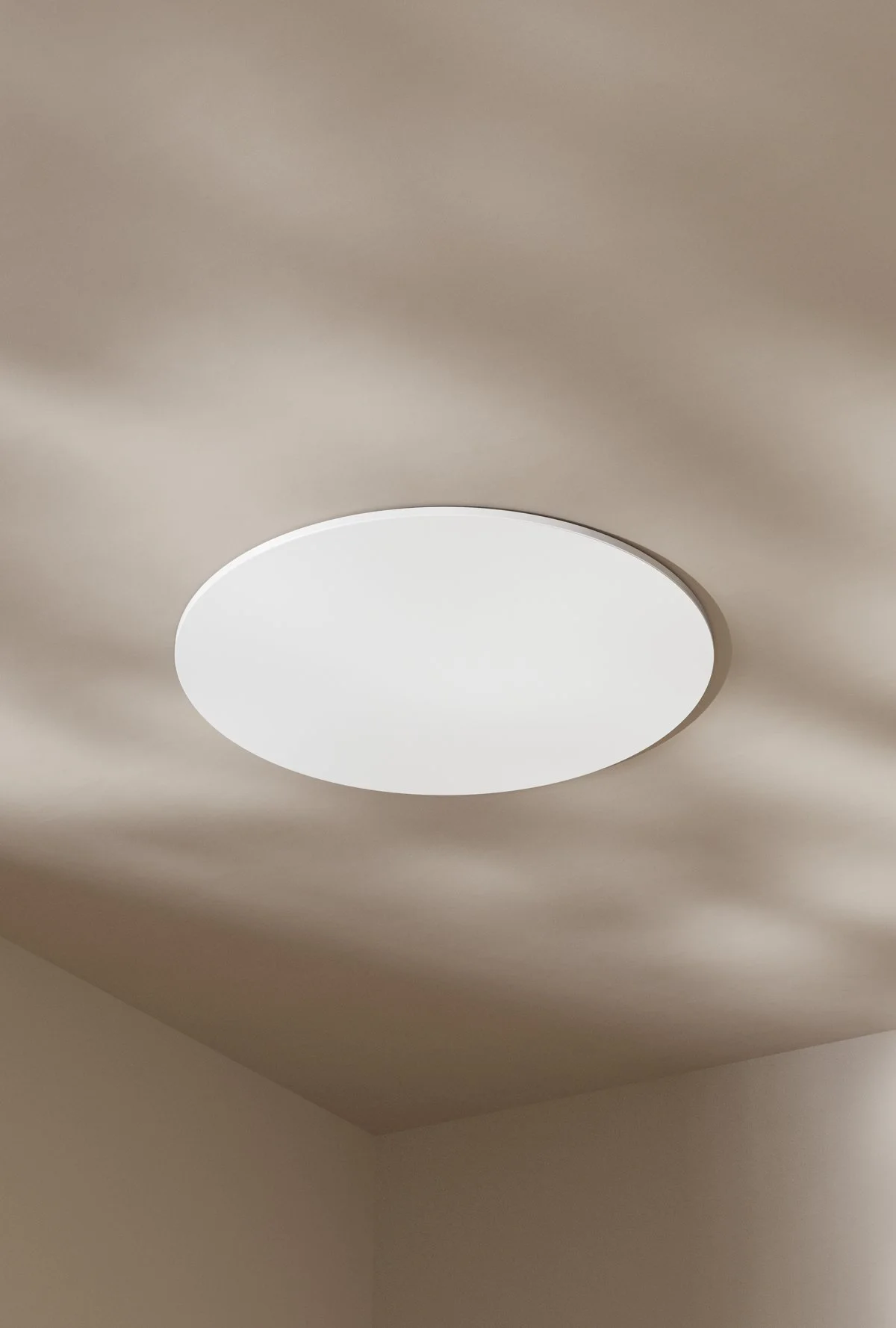

    Screen: Black, White, RAL/NCS Colours

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch


DESIGNED TO DISAPPEAR. CREATED TO ENHANCE.

About in-ceiling



The Architect in-ceiling loudspeakers have been designed and engineered with the same high specifications as all the other Artcoustic models. These loudspeakers have been created to deliver Artcoustic performance from an ultra-thin design, with a clean contemporary aesthetic, but allowing the flexibility to install in-ceiling or in-wall.
