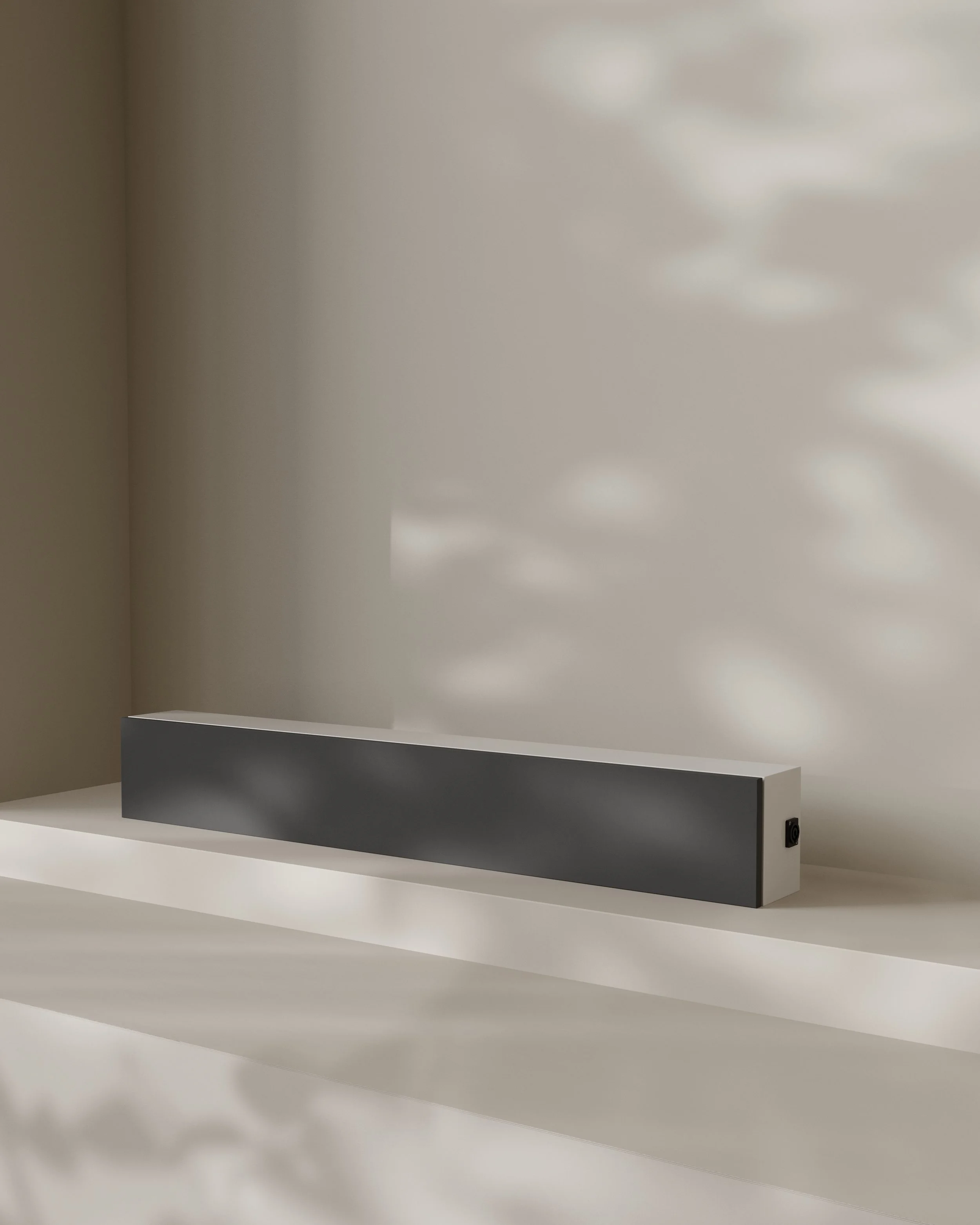

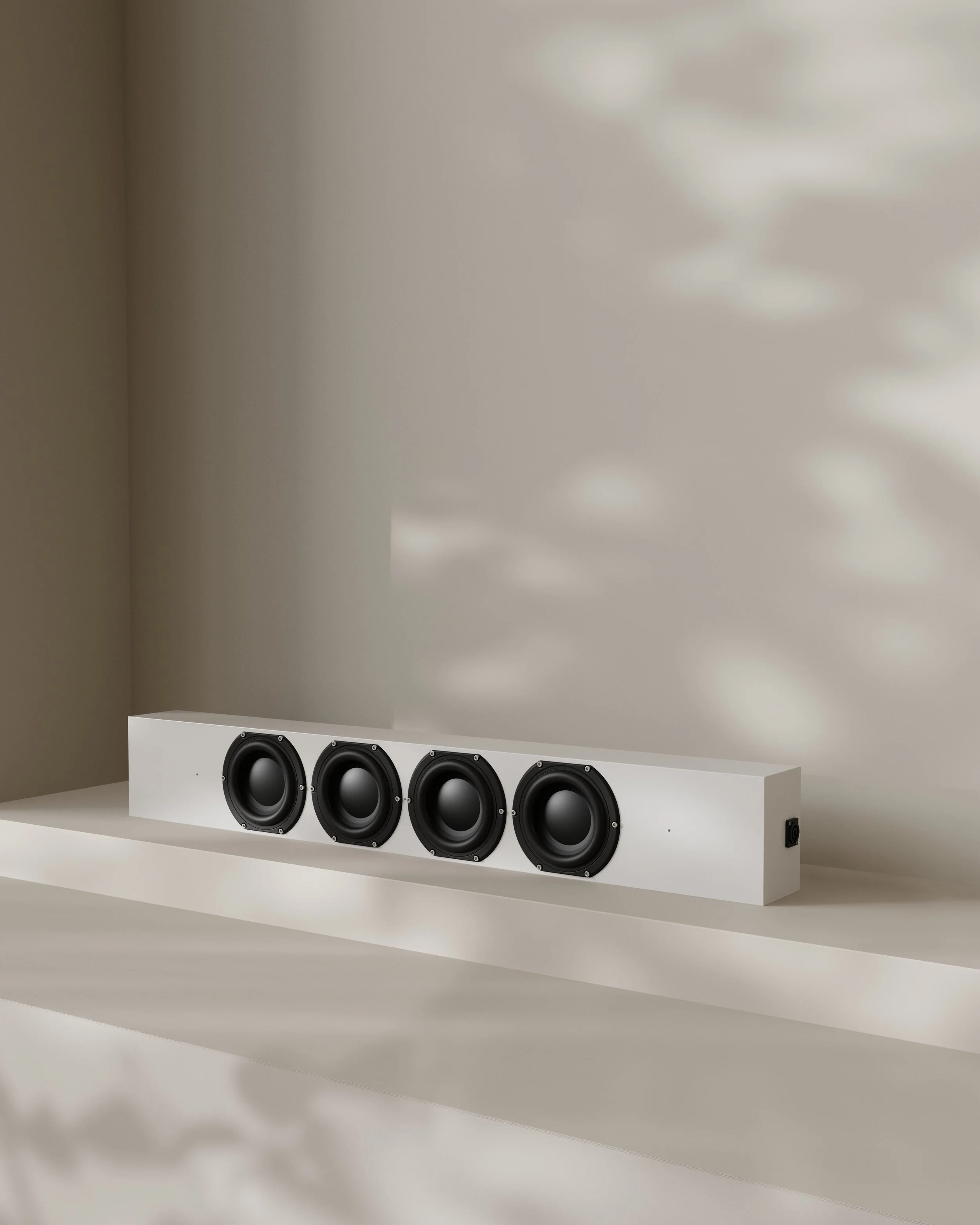

Sub Ci4–5 MK II IP

£0.00

High Bandwidth Sealed Subwoofer. Discreet Form. Powerful Impact. Seamless Integration.


The Sub Ci4-5 IP is the weatherproof evolution of Artcoustic’s acclaimed Ci4-5 subwoofer, engineered for outdoor and wet-room environments. Rated IP66, it delivers the same precise, high-performance bass as the indoor model—now with full protection against moisture, dust, and demanding conditions.

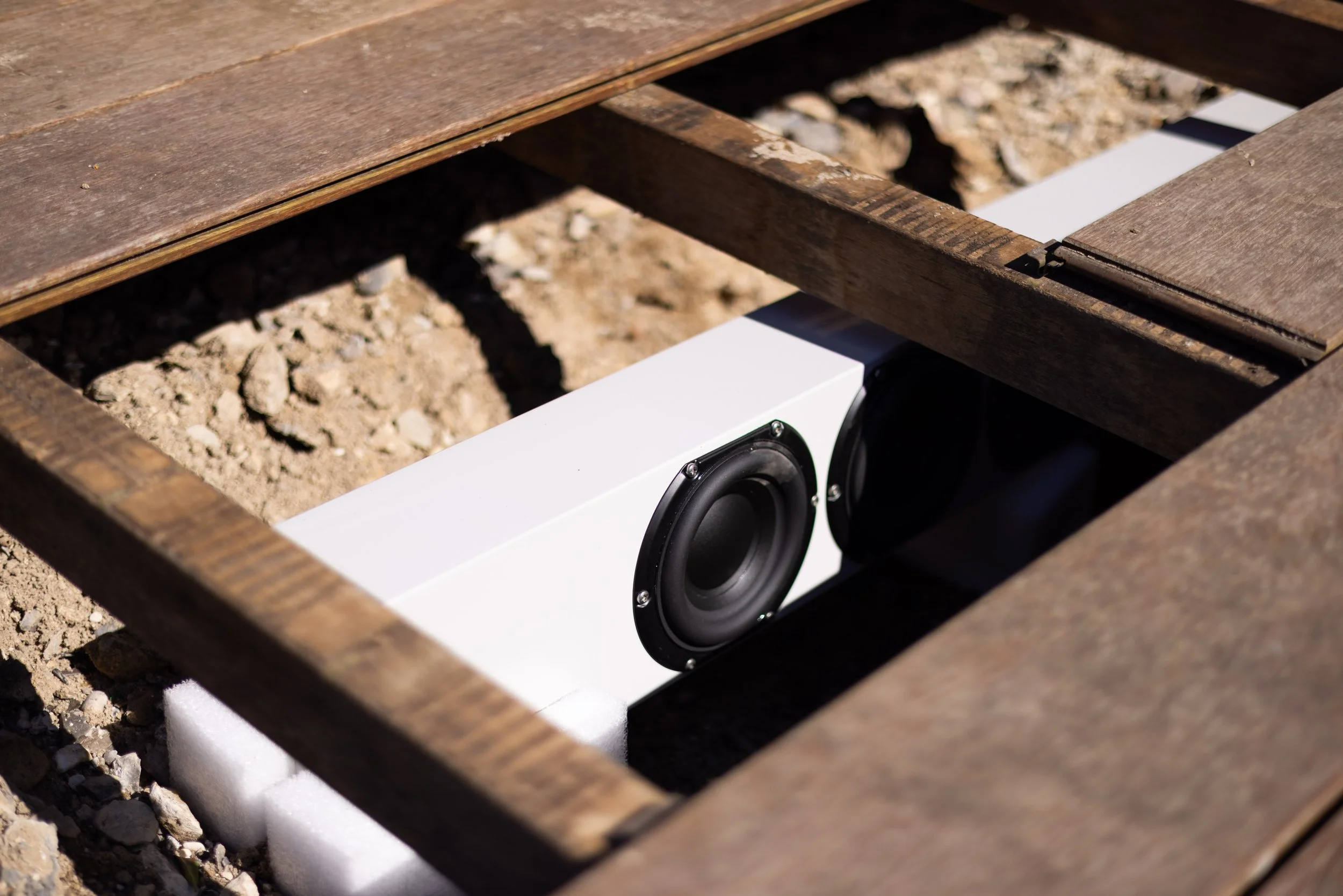

Despite its rugged construction, the Sub Ci4-5 IP maintains an ultra-compact sealed design, ensuring tight, controlled bass and exceptional clarity. Whether concealed beneath furniture, integrated into architectural elements, or installed as a visible design feature, it blends effortlessly into any environment while delivering true Artcoustic performance.

High Bandwidth Sealed Subwoofer. Discreet Form. Powerful Impact. Seamless Integration.


The Sub Ci4-5 IP is the weatherproof evolution of Artcoustic’s acclaimed Ci4-5 subwoofer, engineered for outdoor and wet-room environments. Rated IP66, it delivers the same precise, high-performance bass as the indoor model—now with full protection against moisture, dust, and demanding conditions.

Despite its rugged construction, the Sub Ci4-5 IP maintains an ultra-compact sealed design, ensuring tight, controlled bass and exceptional clarity. Whether concealed beneath furniture, integrated into architectural elements, or installed as a visible design feature, it blends effortlessly into any environment while delivering true Artcoustic performance.




Specifications

  • Frequency range 40 Hz – 170 Hz
    Usable LF response 37 Hz -6dB
    Coverage window Omni
    Rated impedance 8 Ohms
    Sensitivity @ 1 watt 90 dB
    Power handling 400 W @ 56 Vrms
    Maximum continuous SPL @ 1 meter 114 dB
    Power draw 220 W 42 Vrms
    Maximum continuous SPL @ 1 meter @ 30 Hz 105 dB
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 120 dB

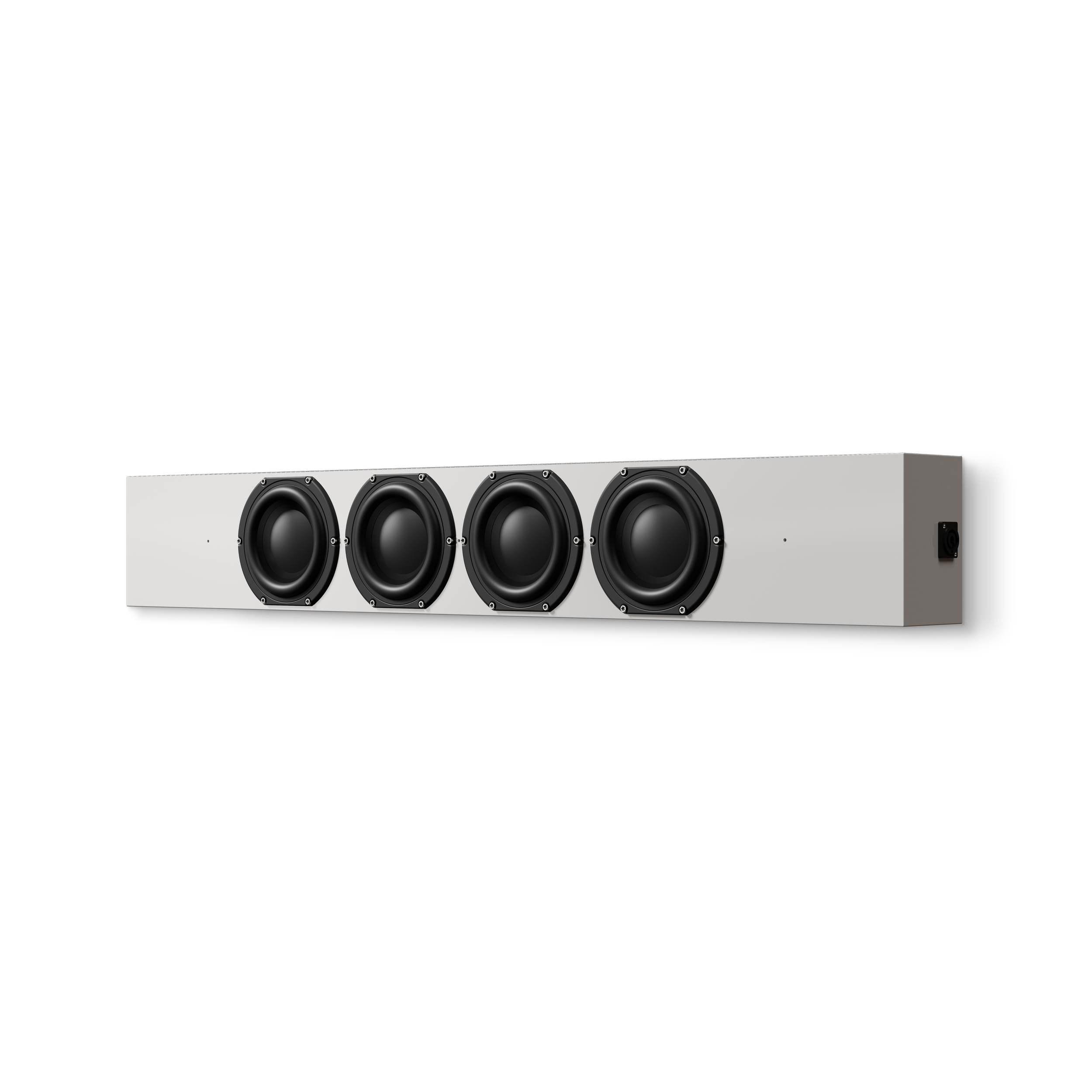

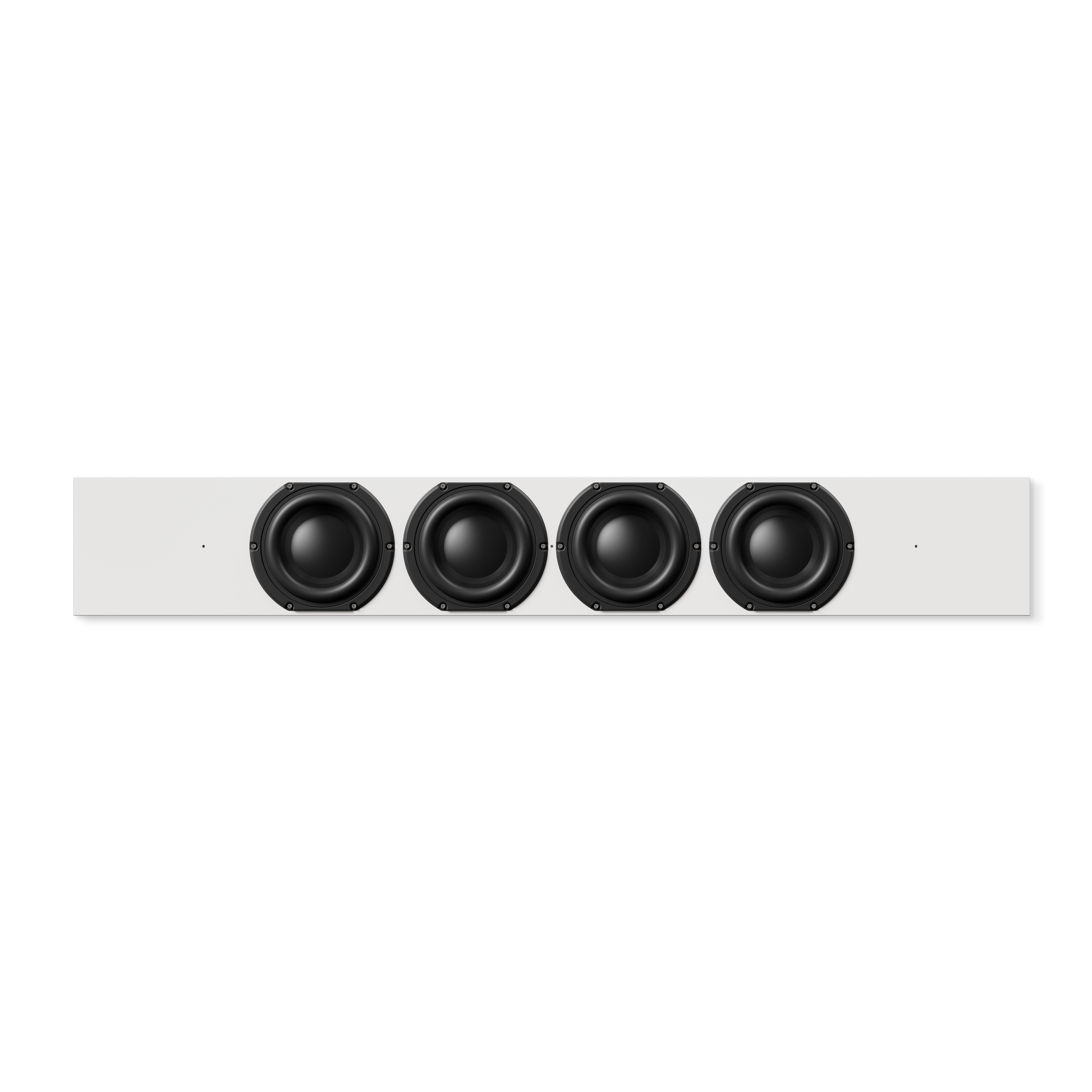

    Transducers LF – 5.5” woofer (x 4)
    Enclosure Medium density Fiber board
    Weight: 10 kg
    Dimensions: H: 145 W: 1000 D: 99 mm / H: 185 W: 1020 D: 111 mm (w. baffle)

    NB: Please download the user manual for the full specification.

  • Colour:

    Cabinet: RAL/NCS, SL Satin
    Screen: RAL/NCS

    Standard cabinet/screen colours are black/white

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch
Get in touch

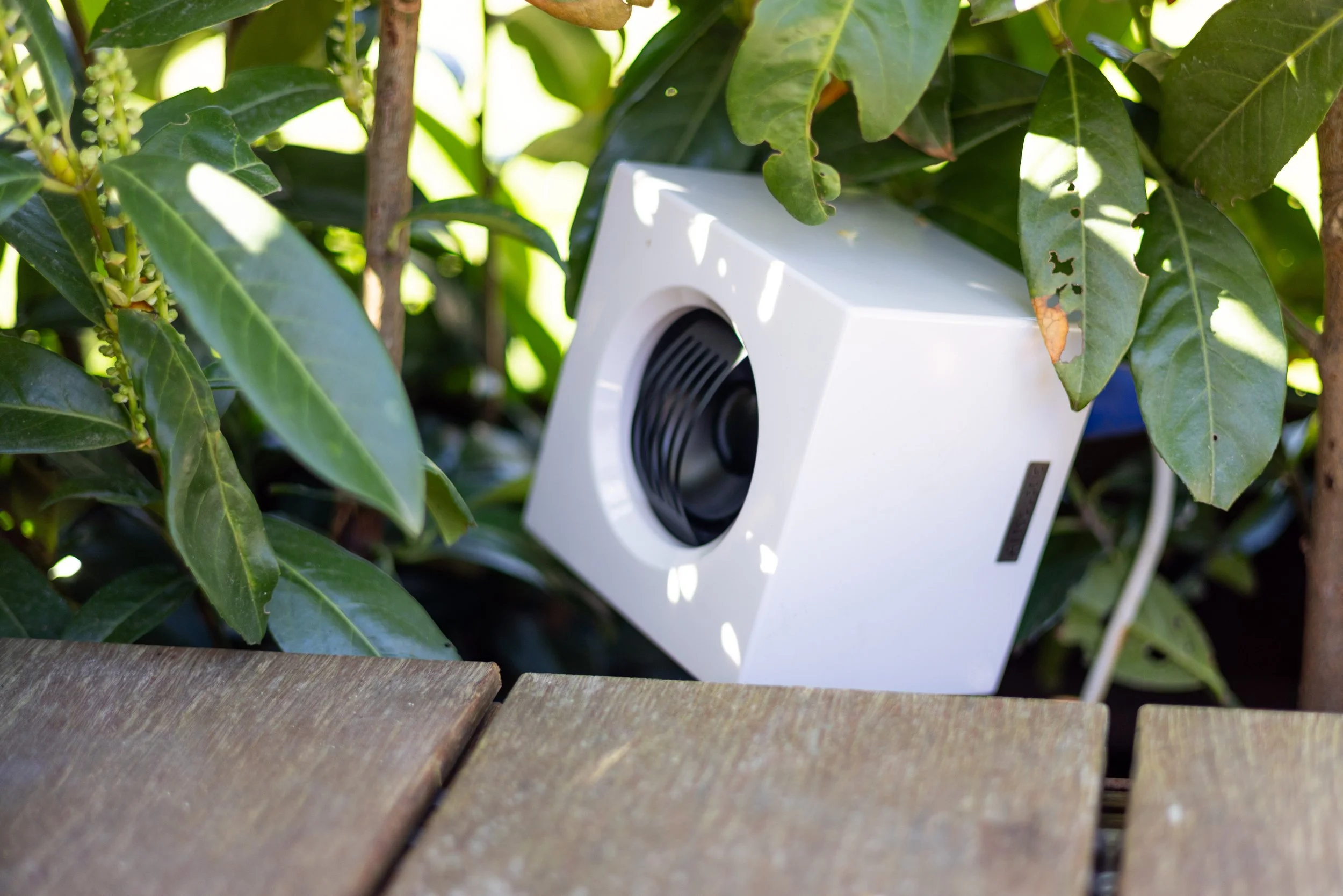

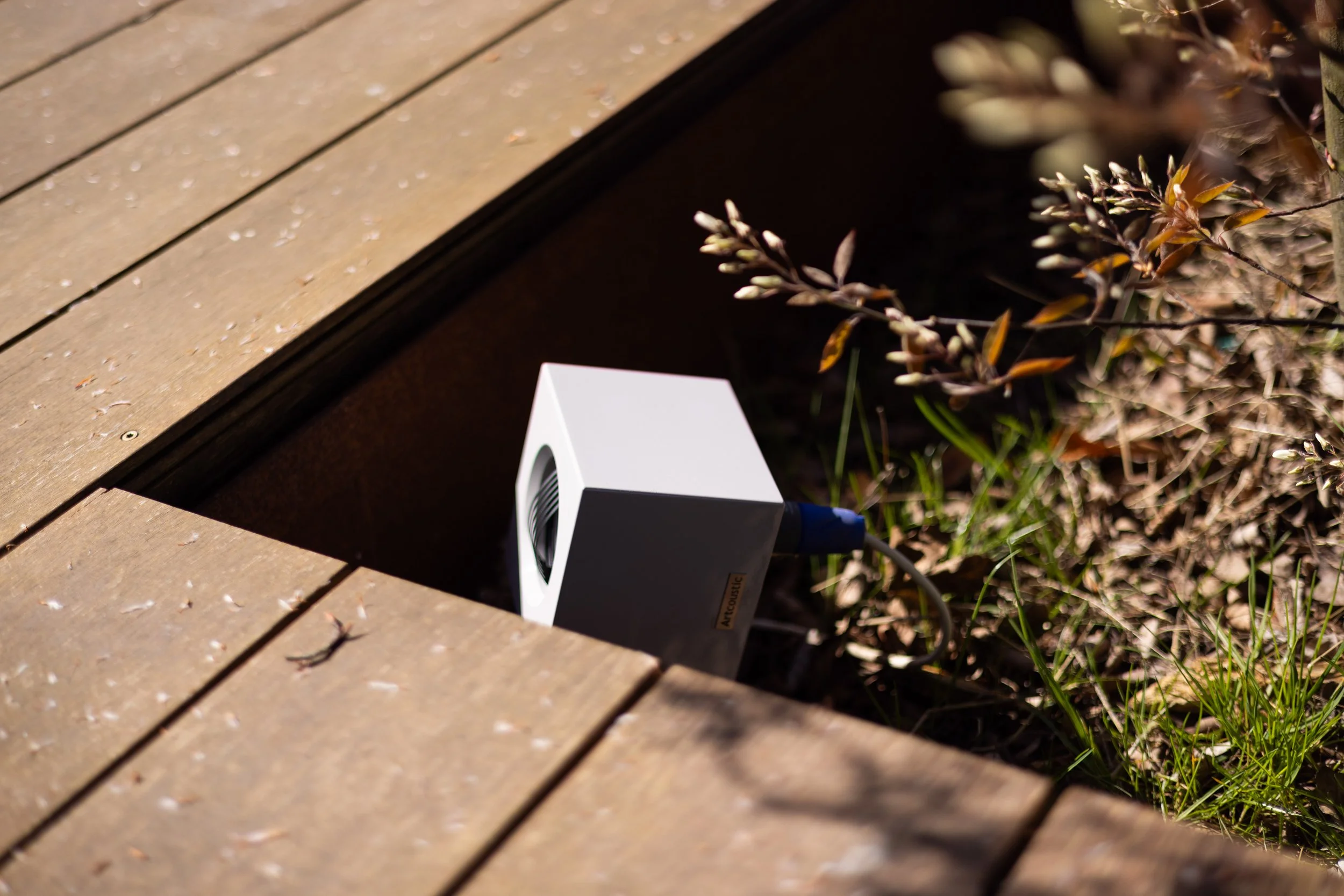

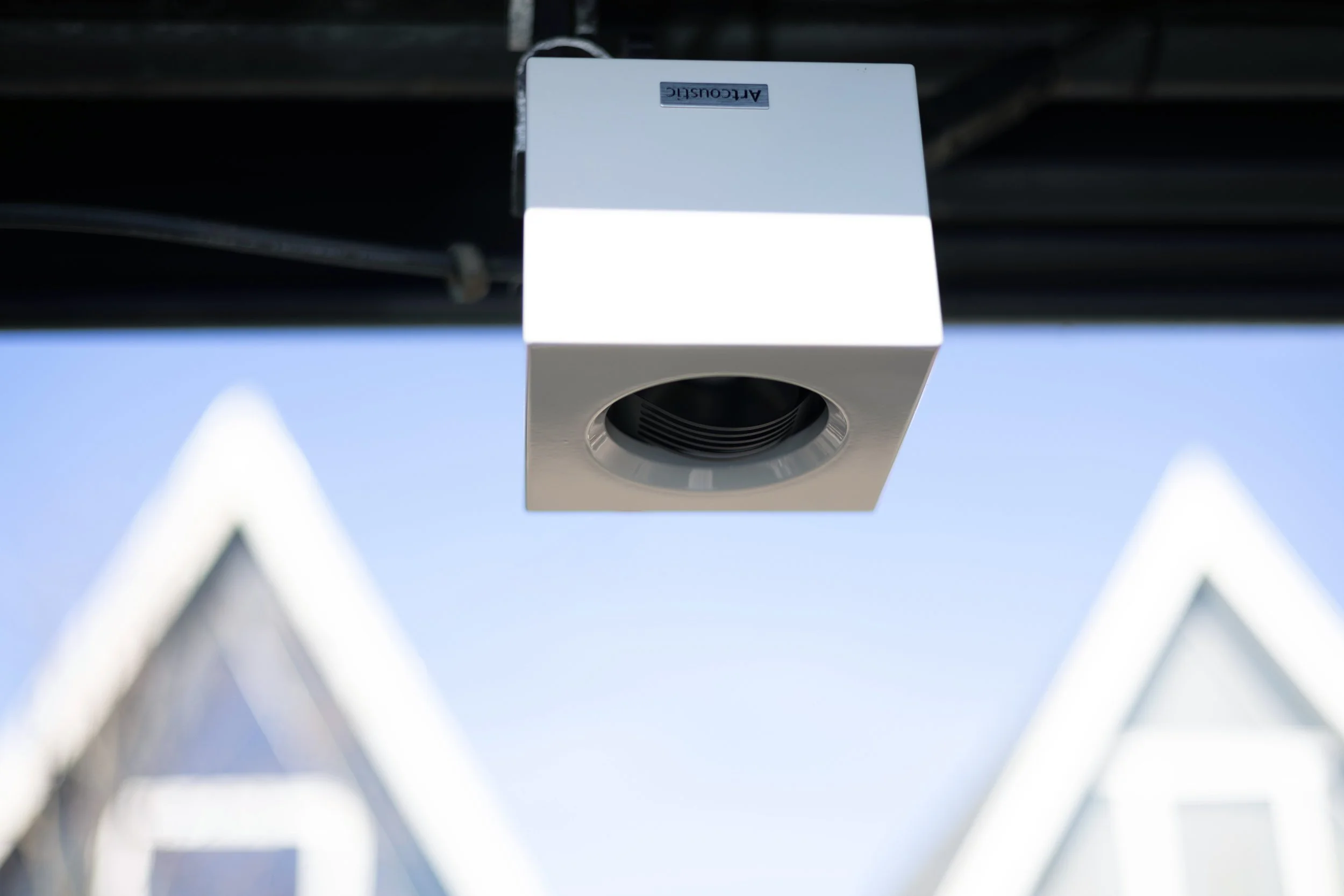

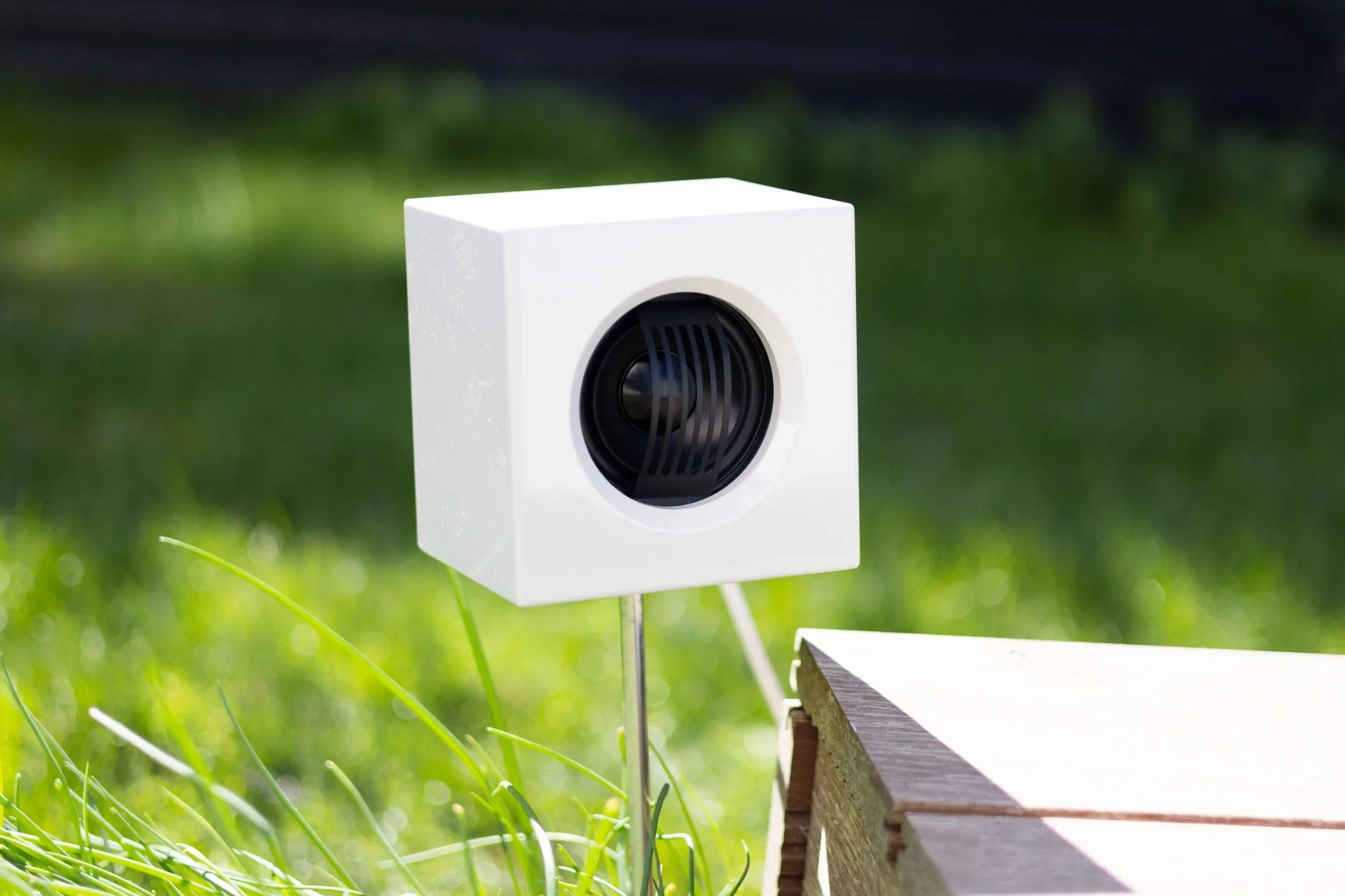

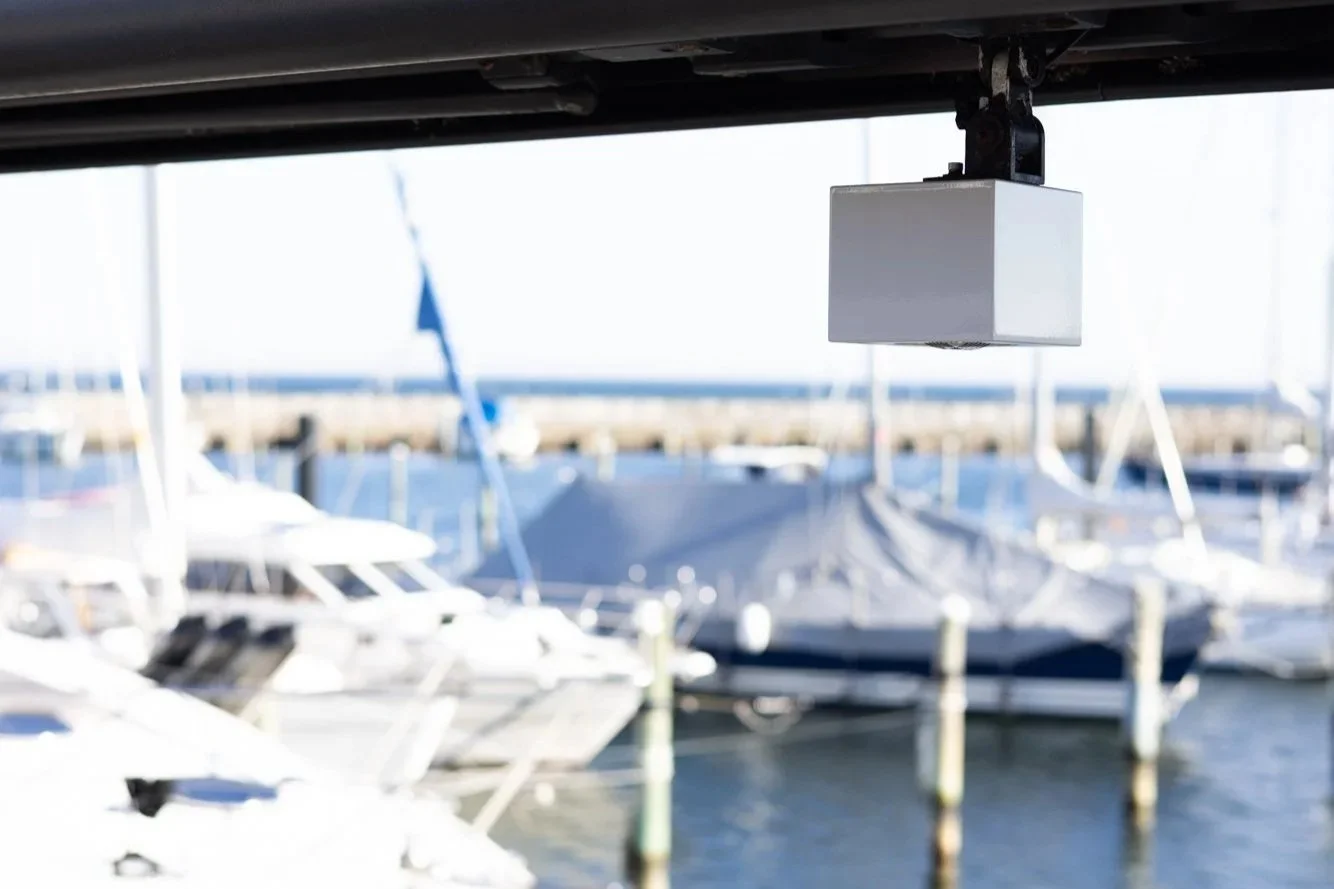

ARTCOUSTIC OUTDOOR SOLUTIONS



About Subwoofer Series

More than 20 years of subwoofer technology and acoustic evolution has developed into the most advanced and powerful subwoofer series ever produced by Artcoustic.

The Artcoustic Sub Series is a low resonance frequency 4th order band pass design, which ensures powerful and clean bass. Ideal for professional applications such as recording and film studios, dedicated cinemas and fixed installations.
