Loudspeaker Specifications
-
Frequency range 100 Hz to 20 kHz
Usable LF response 97 Hz (-6 dB)
Coverage window Horizontal 90°, Vertical 45°
Sensitivity @ 1 Watt 98 dB
Power handling 120 Watt
Maximum continuous SPL @ 1 meter 114 dB
Maximum acoustic peak SPL crest factor 6 @ 1 meter 120 dB
Rated Impedance 4 ohms
Weight: 2.9 kg
Dimensions: H: 300 W: 300 D: 73 mmNB: Please download the user manual for the full specification.
-
Cabinet: Black
Screen: Black, White, RAL/NCS Colours.
-
REFERENCE CINEMA PERFORMANCE. SEAMLESSLY INTEGRATED.
About Spitfire Series
The Spitfire Series is Artcoustic’s dedicated cinema range of products. Its slimline profile, adjustable vertical and horizontal array, combined with a powerful and articulated performance, makes it the ideal choice for high-end cinema rooms and commercial installations, such as bars and clubs, and in general installations requiring high SPL. Use Artcoustic Spitfire Arrays for discrete professional applications.
Purpose-built for immersive cinema
Modern immersive soundtracks rely on precise overhead localisation. Yet many traditional ceiling loudspeakers disperse sound broadly throughout the room, reducing object definition and spatial accuracy.
The Spitfire Cloud has been developed specifically to solve this challenge.

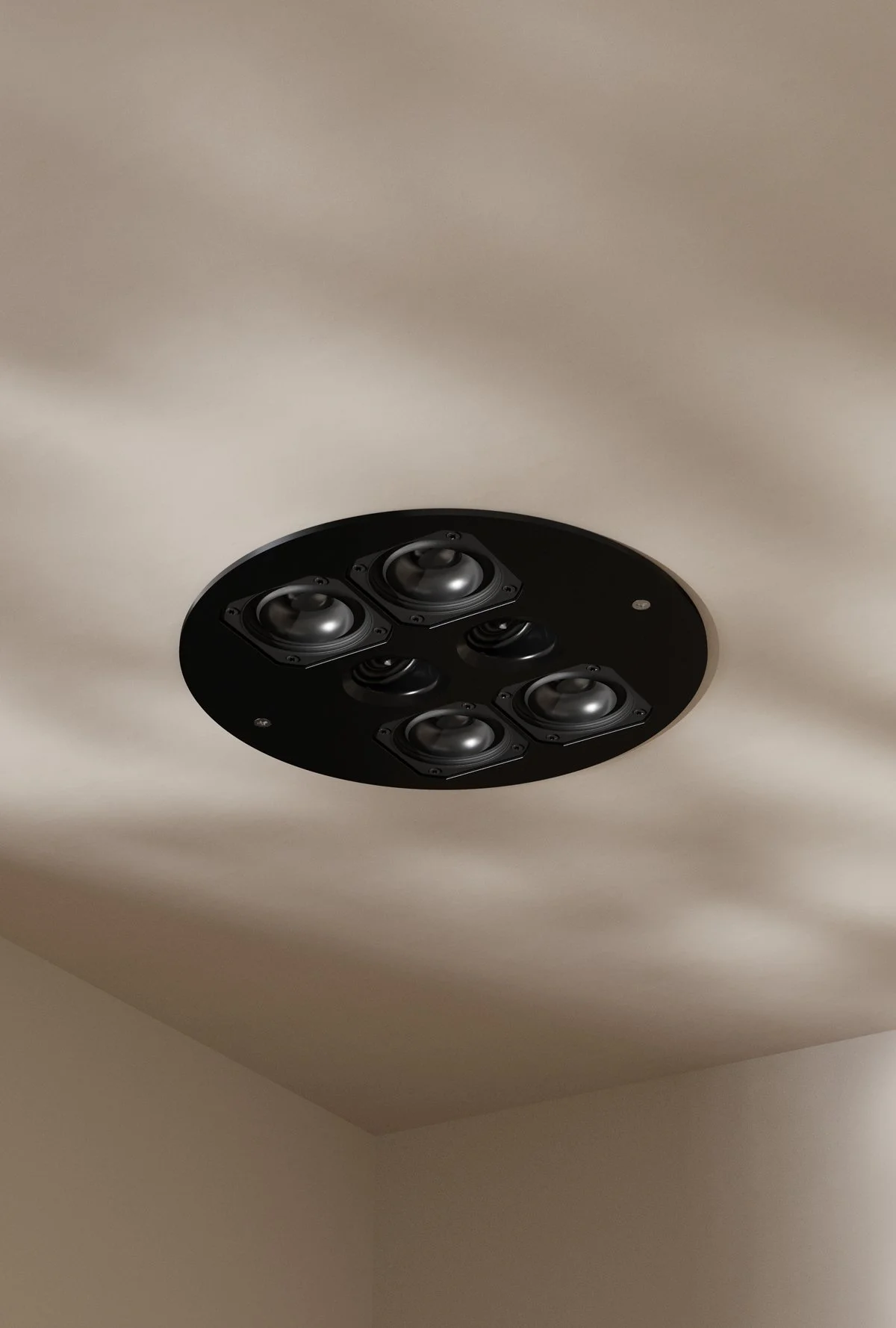

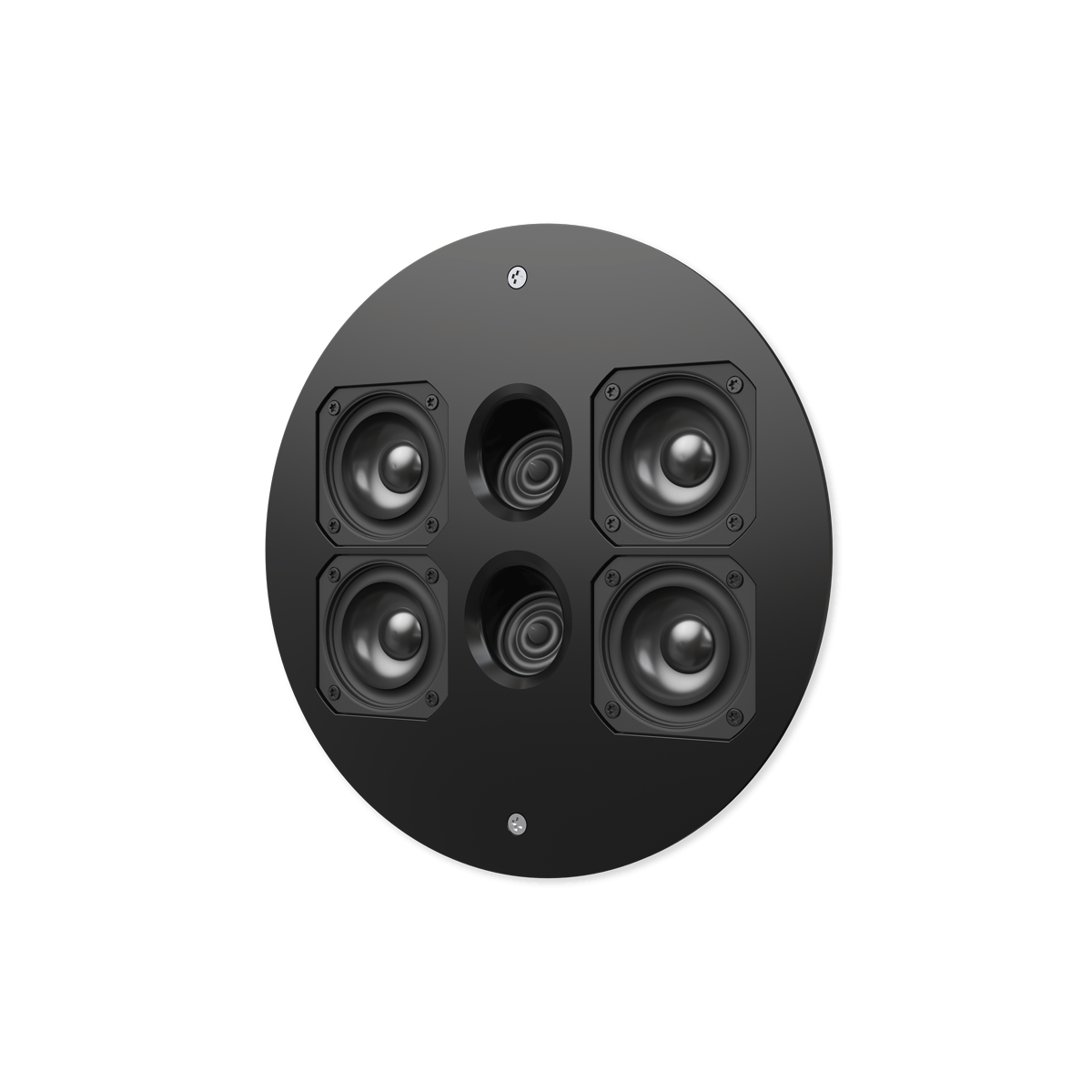

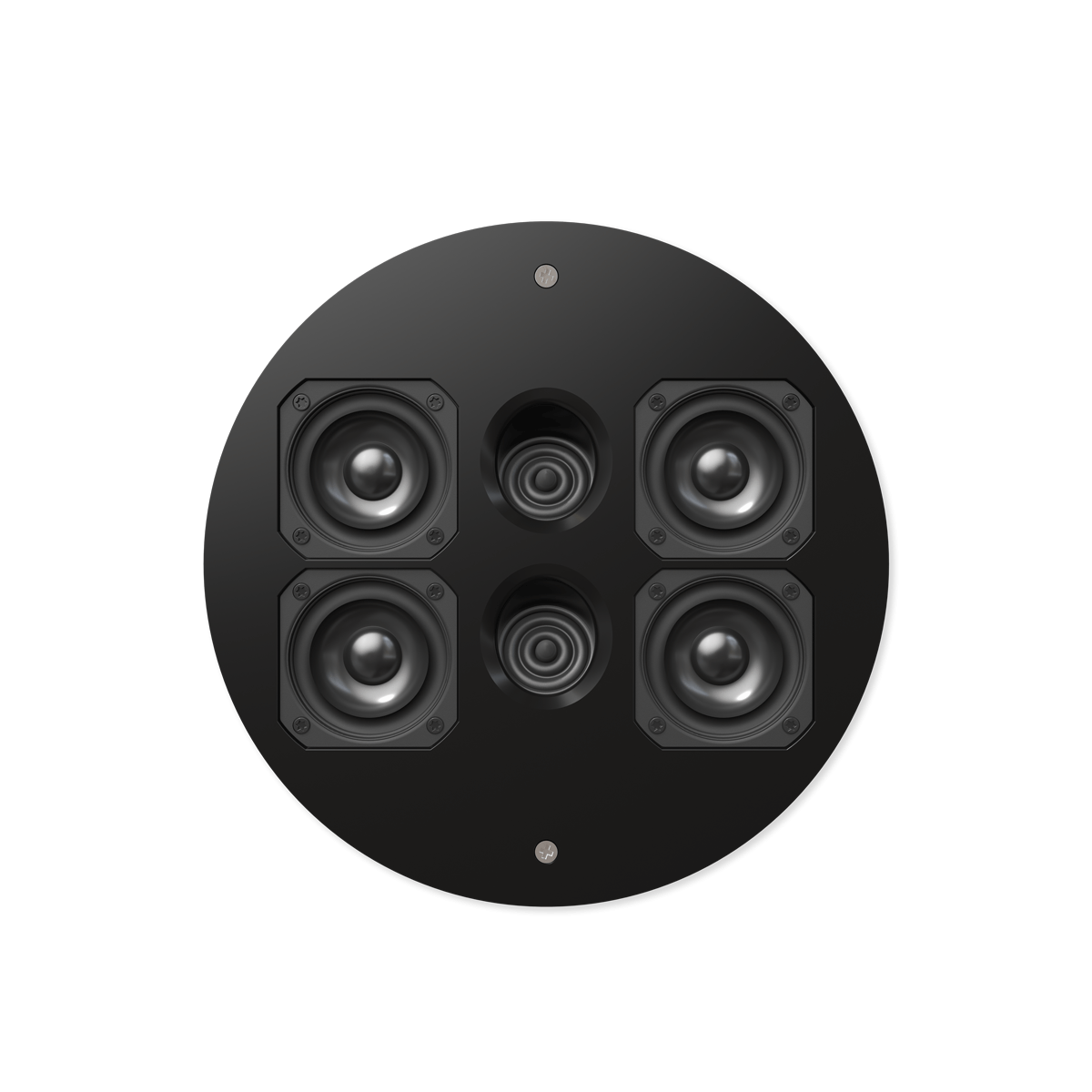

Rather than employing a conventional coaxial design, the loudspeaker uses four high-performance 3-inch long-throw drivers alongside dual Artcoustic ring-radiator high-frequency units mounted on an angled acoustic baffle.
The result is a carefully controlled coverage pattern of approximately 90° horizontally by 45° vertically, directing acoustic energy towards the listening area instead of the surrounding ceiling.
This controlled directivity delivers significantly improved Atmos object localisation, greater spatial precision, enhanced dialogue intelligibility and a remarkably consistent listening experience across multiple seating positions.
Designed to integrate seamlessly with the wider Spitfire ecosystem, the Cloud maintains tonal consistency with Artcoustic screen and surround loudspeakers, creating a highly coherent immersive sound field capable of reference-level performance.
