Spitfire Q 4-3

£0.00

The Artcoustic Spitfire Q Series represents a new benchmark for cinema loudspeakers. Developed for high-end private cinemas and fixed professional installations, it combines the benefits of line-array performance with the elegance and simplicity of a single enclosure.

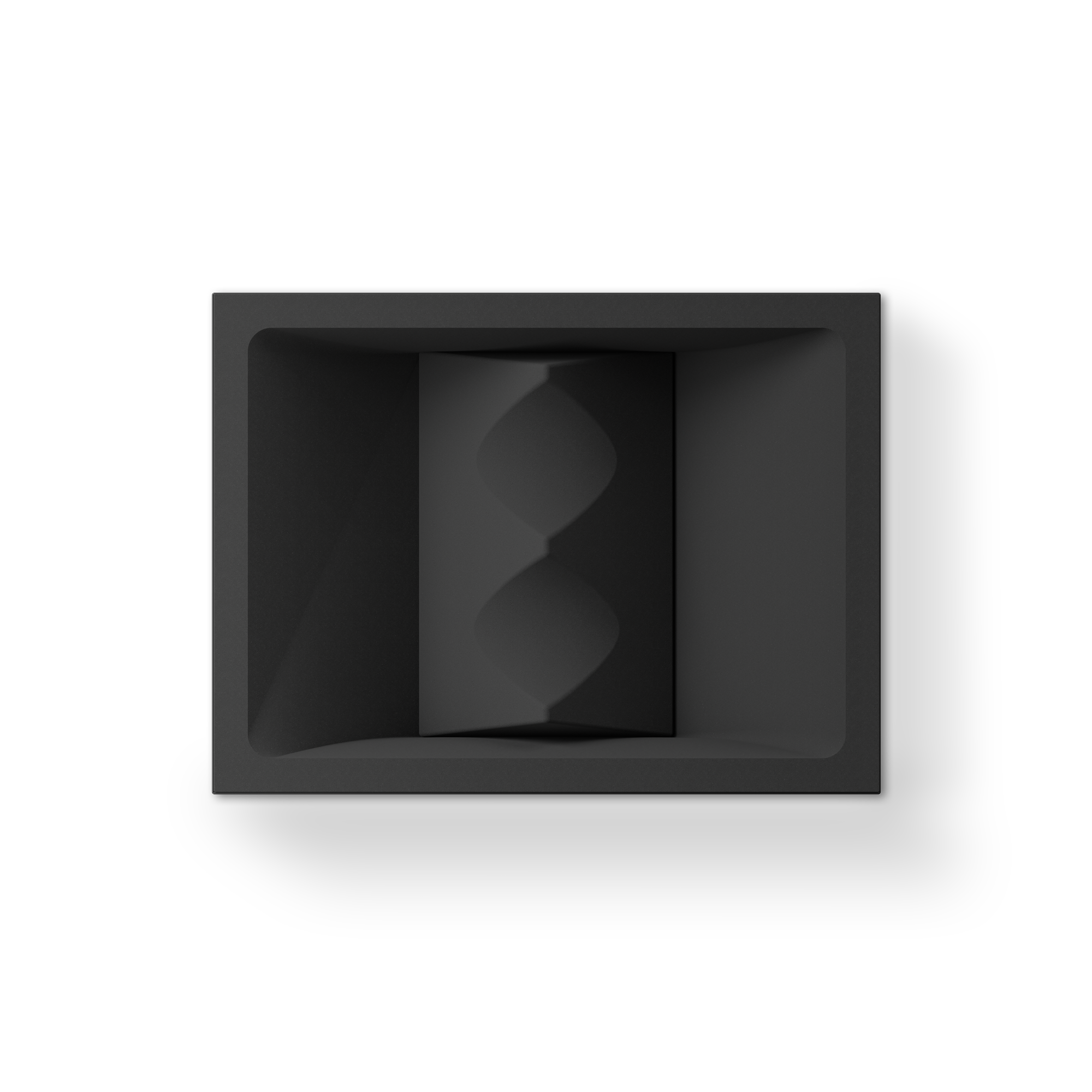

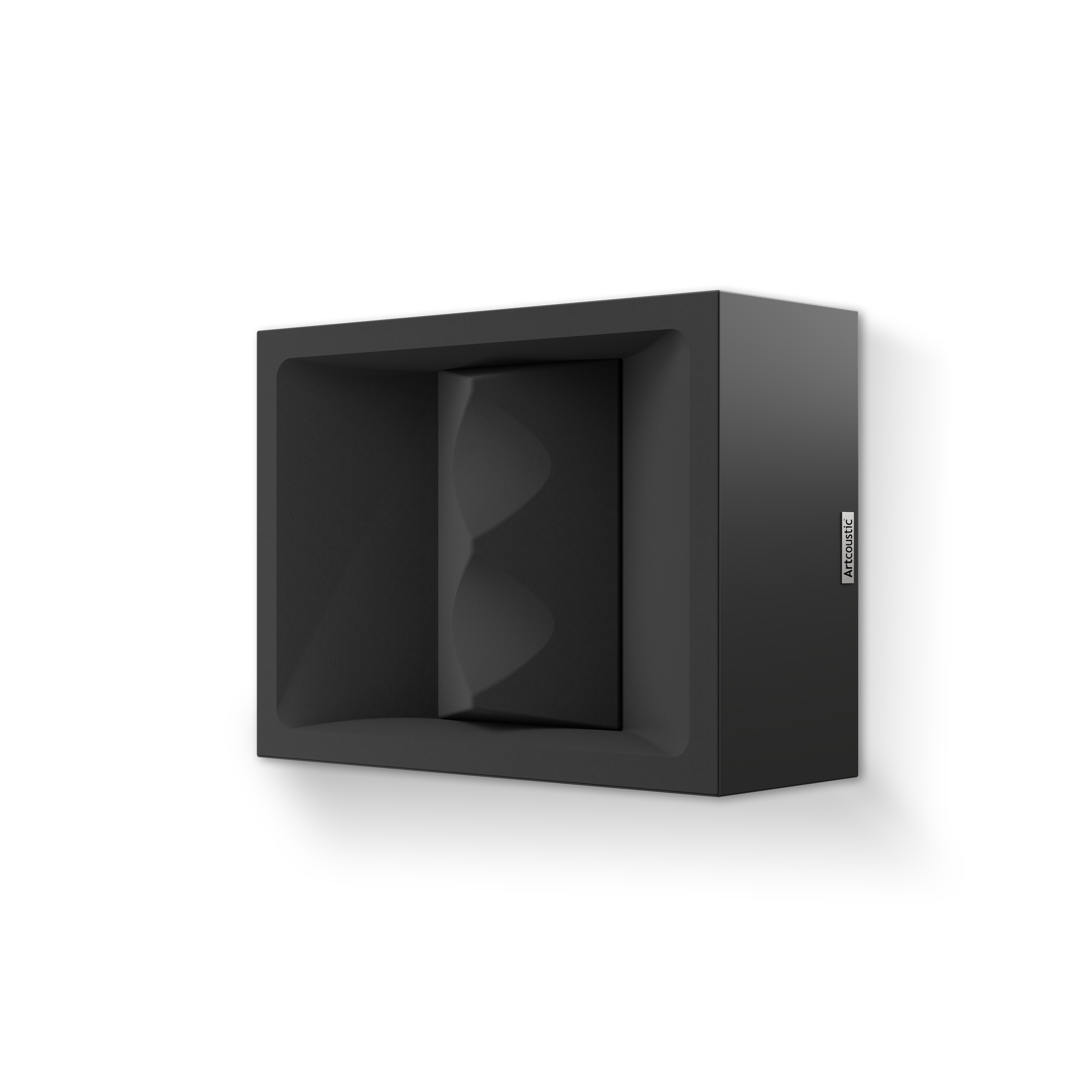

The Spitfire Q 4-3 is the most compact model in the Q-Series, designed for installations where space efficiency and visual discretion are critical. Using a fixed quasi line-array configuration of 3-inch drivers, the Q4-3 delivers exceptional speech intelligibility, precise imaging, and tightly controlled dispersion tailored for cinema applications.

The Artcoustic Spitfire Q Series represents a new benchmark for cinema loudspeakers. Developed for high-end private cinemas and fixed professional installations, it combines the benefits of line-array performance with the elegance and simplicity of a single enclosure.

The Spitfire Q 4-3 is the most compact model in the Q-Series, designed for installations where space efficiency and visual discretion are critical. Using a fixed quasi line-array configuration of 3-inch drivers, the Q4-3 delivers exceptional speech intelligibility, precise imaging, and tightly controlled dispersion tailored for cinema applications.



Loudspeaker Specifications

  • Frequency range: 100 Hz – 20 kHz
    Usable LF response: 97 Hz -6dB - 20 kHz
    Coverage window: Horizontal 90 Vertical 45
    Rated impedance: 4 Ohms
    Sensitivity @ 1 watt: 98 dB
    Power handling 120 W @ 31 Vrms
    Maximum continuous SPL @ 1 meter: 112 dB Power draw 20 W 13 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter: 118 dB
    Transducers LF – 3” woofer (x 4)  HF – 1.5” woofer (x 2)
    Enclosure Medium density Fiber board
    Accessories Wall Mounts
    Weight 3.8 kg
    Dimensions H: 210 W: 280 D: 115 mm

    NB: Please download the user manual for the full specification.

  • Colour:

    Cabinet: Black, SL Satin

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch
Get in touch


More dynamic. More accurate. More revealing than ever before.

About Spitfire Series

The Spitfire Series is Artcoustic’s dedicated cinema range of products. Its slimline profile, adjustable vertical and horizontal array, combined with a powerful and articulated performance, makes it the ideal choice for high-end cinema rooms and commercial installations, such as bars and clubs, and in general installations requiring high SPL. Use Artcoustic Spitfire Arrays for discrete professional applications.
