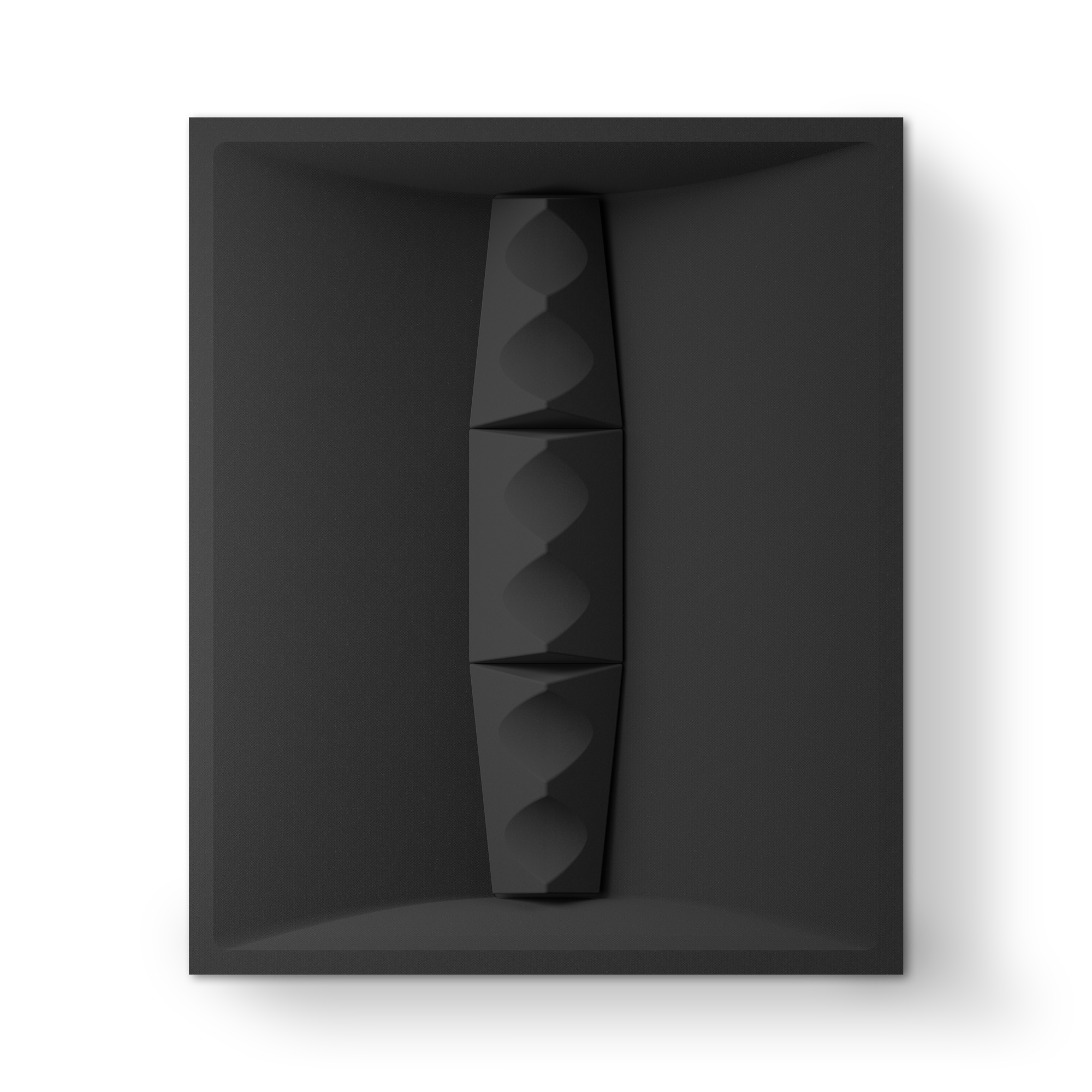

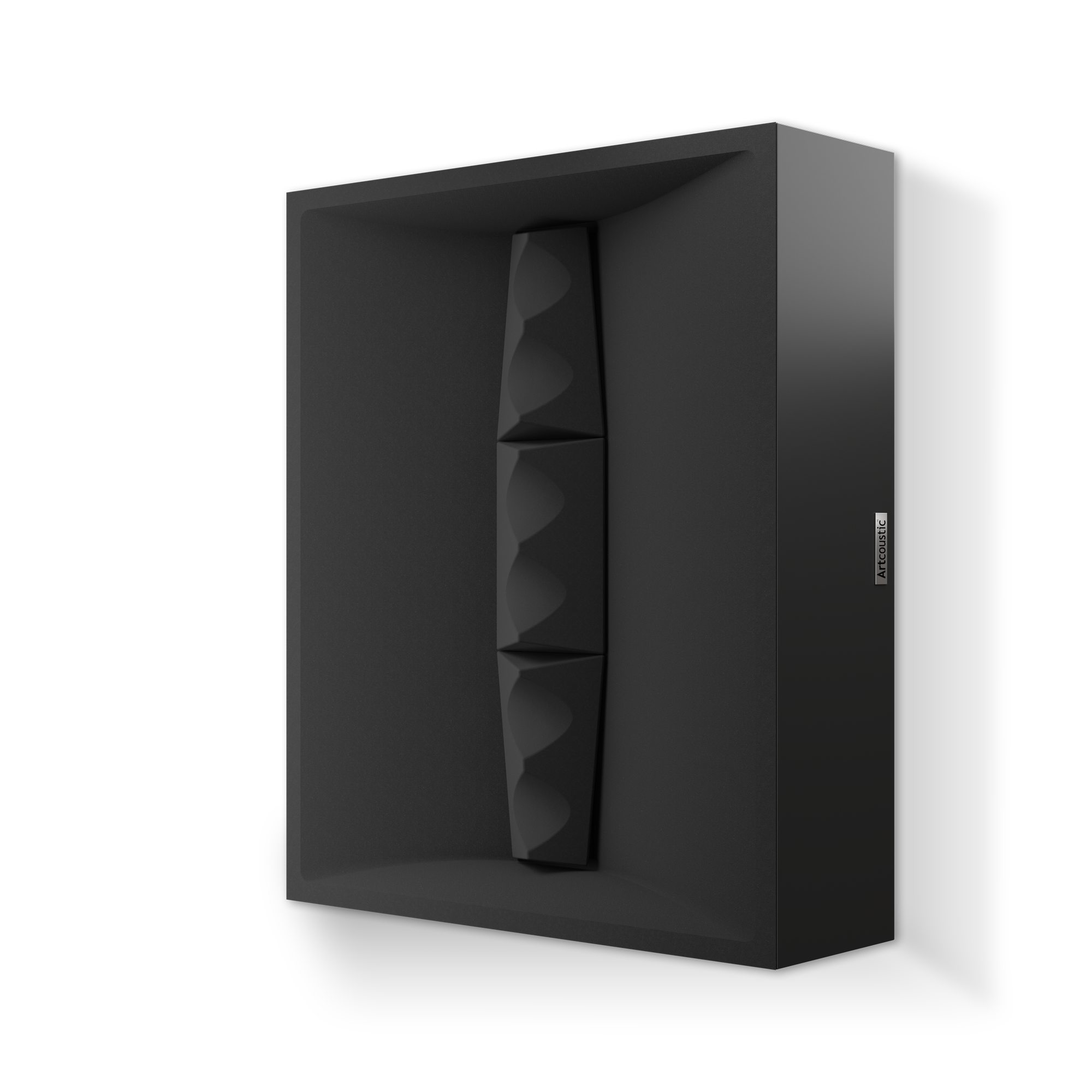

Spitfire Q 8-5

£0.00

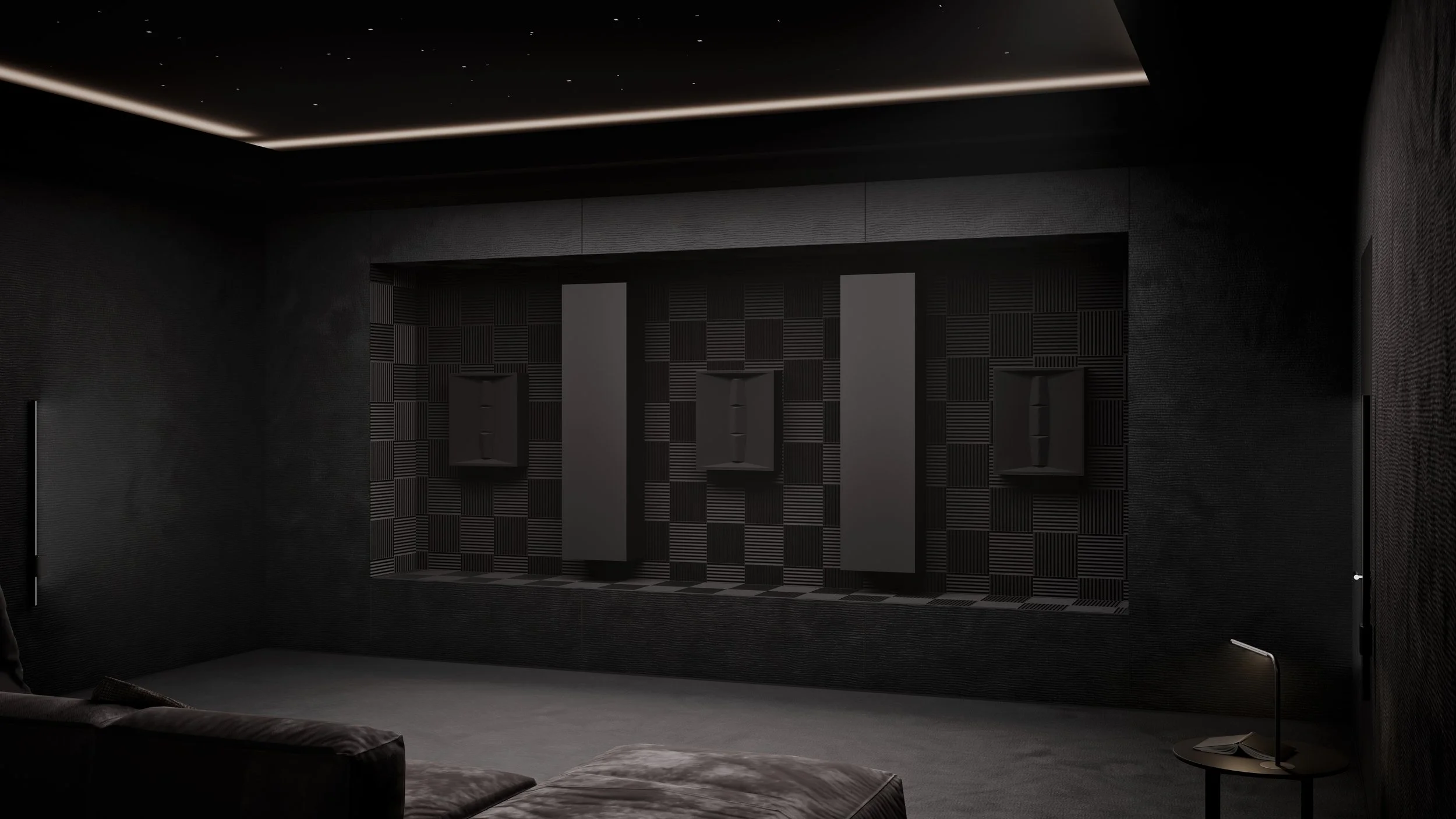

The Artcoustic Spitfire Q Series represents a new benchmark for cinema loudspeakers. Developed for high-end private cinemas and fixed professional installations, it combines the benefits of line-array performance with the elegance and simplicity of a single enclosure.

The Spitfire Q8-5 is the flagship model of the Q-Series, engineered for large-scale cinema installations where maximum output, control, and realism are required. Utilizing an extensive fixed quasi line-array of 5.25-inch drivers, the Q8-5 delivers authoritative full-range performance with exceptional clarity, uniform coverage, and cinematic dynamics.

The Artcoustic Spitfire Q Series represents a new benchmark for cinema loudspeakers. Developed for high-end private cinemas and fixed professional installations, it combines the benefits of line-array performance with the elegance and simplicity of a single enclosure.

The Spitfire Q8-5 is the flagship model of the Q-Series, engineered for large-scale cinema installations where maximum output, control, and realism are required. Utilizing an extensive fixed quasi line-array of 5.25-inch drivers, the Q8-5 delivers authoritative full-range performance with exceptional clarity, uniform coverage, and cinematic dynamics.



Specifications

  • Frequency range: 50 Hz – 20 kHz
    Usable LF response 40 Hz -6dB - 20 kHz
    Coverage window: Horizontal 90 Vertical 35
    Rated impedance: 4 Ohms
    Sensitivity @ 1 watt: 103 dB
    Power handling 800 W @ 80 Vrms
    Maximum continuous SPL @ 1 meter: 128 dB Power draw 260 W 46 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter: 134 dB
    Maximum continuous SPL @ 1 meter: HPF 100Hz 132 dB Power draw 400 W 57 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter: 138 dB
    Transducers LF – 5.5” woofer (x 8)  HF – 1.5” woofer (x 6)
    Enclosure Medium density Fiber board
    Accessories Wall Mounts
    Weight 23.6 kg
    Dimensions H: 500 W: 600 D: 165 mm

    NB: Please download the user manual for the full specification.

  • Colour:

    Cabinet: Black, SL Satin

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch
Get in touch


When power meets precision

About Spitfire Series

The Spitfire Series is Artcoustic’s dedicated cinema range of products. Its slimline profile, adjustable vertical and horizontal array, combined with a powerful and articulated performance, makes it the ideal choice for high-end cinema rooms and commercial installations, such as bars and clubs, and in general installations requiring high SPL. Use Artcoustic Spitfire Arrays for discrete professional applications.
