Spitfire Q 4-5

£0.00

The Artcoustic Spitfire Q Series represents a new benchmark for cinema loudspeakers. Developed for high-end private cinemas and fixed professional installations, it combines the benefits of line-array performance with the elegance and simplicity of a single enclosure.

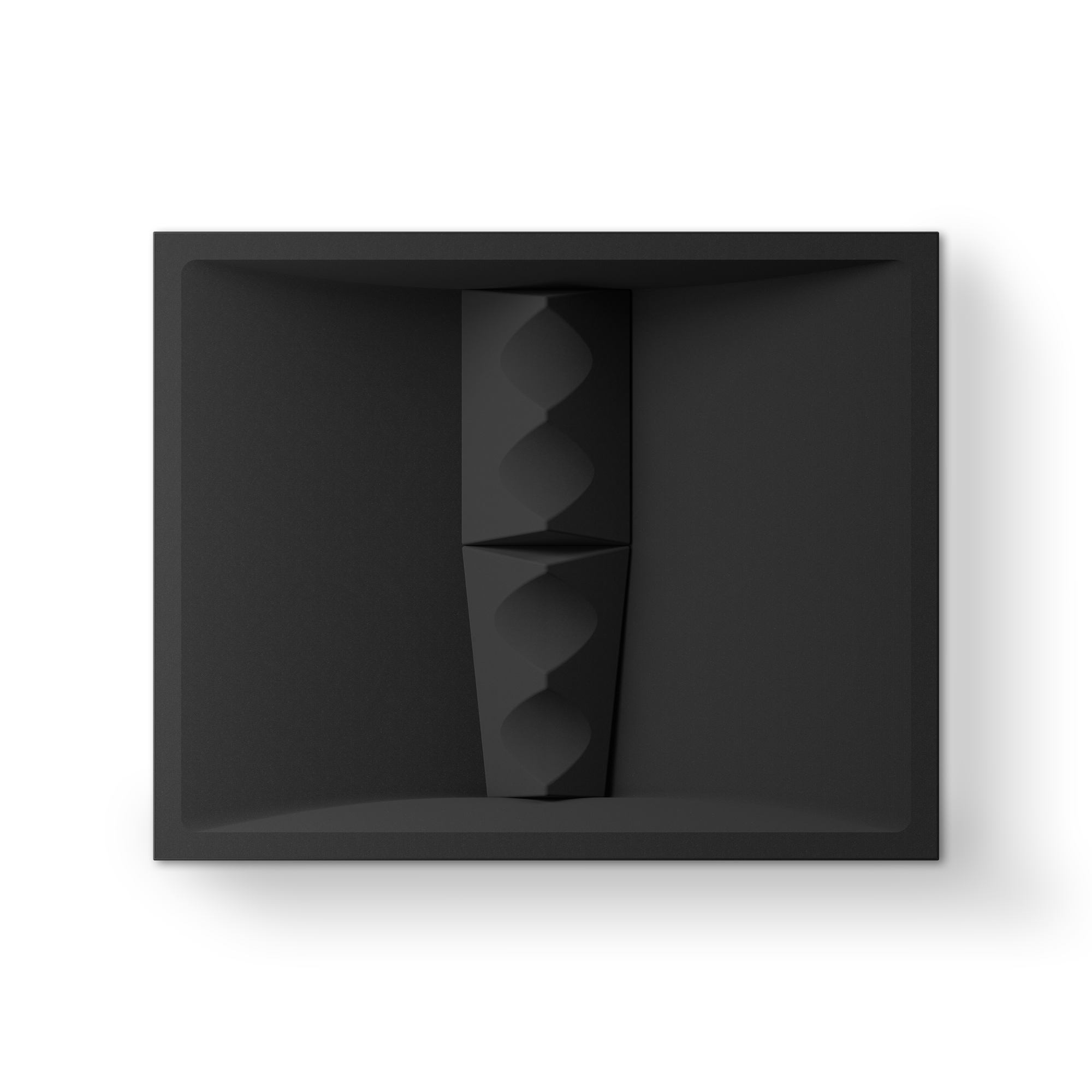

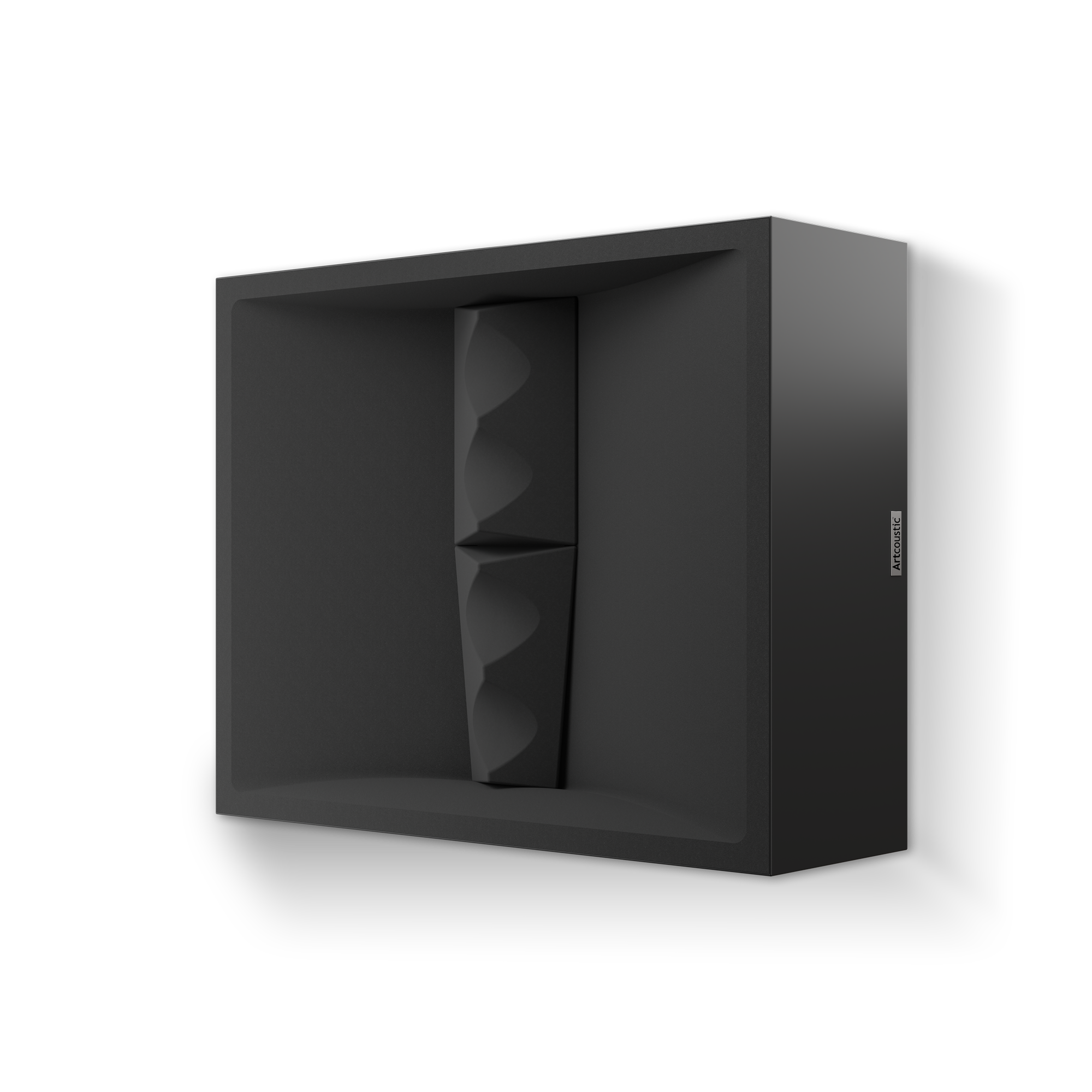

The Spitfire Q4-5 represents the step into full-range performance within the Q-Series. Employing larger 5.25-inch drivers in a fixed quasi line-array configuration, the Q4-5 offers increased low-frequency extension, greater dynamic authority, and higher overall output capability compared to the smaller models.

The Artcoustic Spitfire Q Series represents a new benchmark for cinema loudspeakers. Developed for high-end private cinemas and fixed professional installations, it combines the benefits of line-array performance with the elegance and simplicity of a single enclosure.

The Spitfire Q4-5 represents the step into full-range performance within the Q-Series. Employing larger 5.25-inch drivers in a fixed quasi line-array configuration, the Q4-5 offers increased low-frequency extension, greater dynamic authority, and higher overall output capability compared to the smaller models.



Specifications

  • Frequency range 50 Hz – 20 kHz
    Usable LF response 40 Hz (-6dB)
    Coverage window: Horizontal 90 Vertical 40
    Rated impedance: 4 Ohms
    Sensitivity @ 1 watt: 99 dB
    Power handling 400 W @ 54 Vrms
    Maximum continuous SPL @ 1 meter: 122 dB Power draw 160 W 36 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter: 128 dB
    Maximum continuous SPL @ 1 meter: HPF 100Hz 125 dB Power draw 370 W 54 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter: 131 dB
    Transducers LF – 5.5” woofer (x 4)  HF – 1” Ring Radiator (x 4)
    Enclosure Medium density Fiber board. Elite Pro HDC Composite

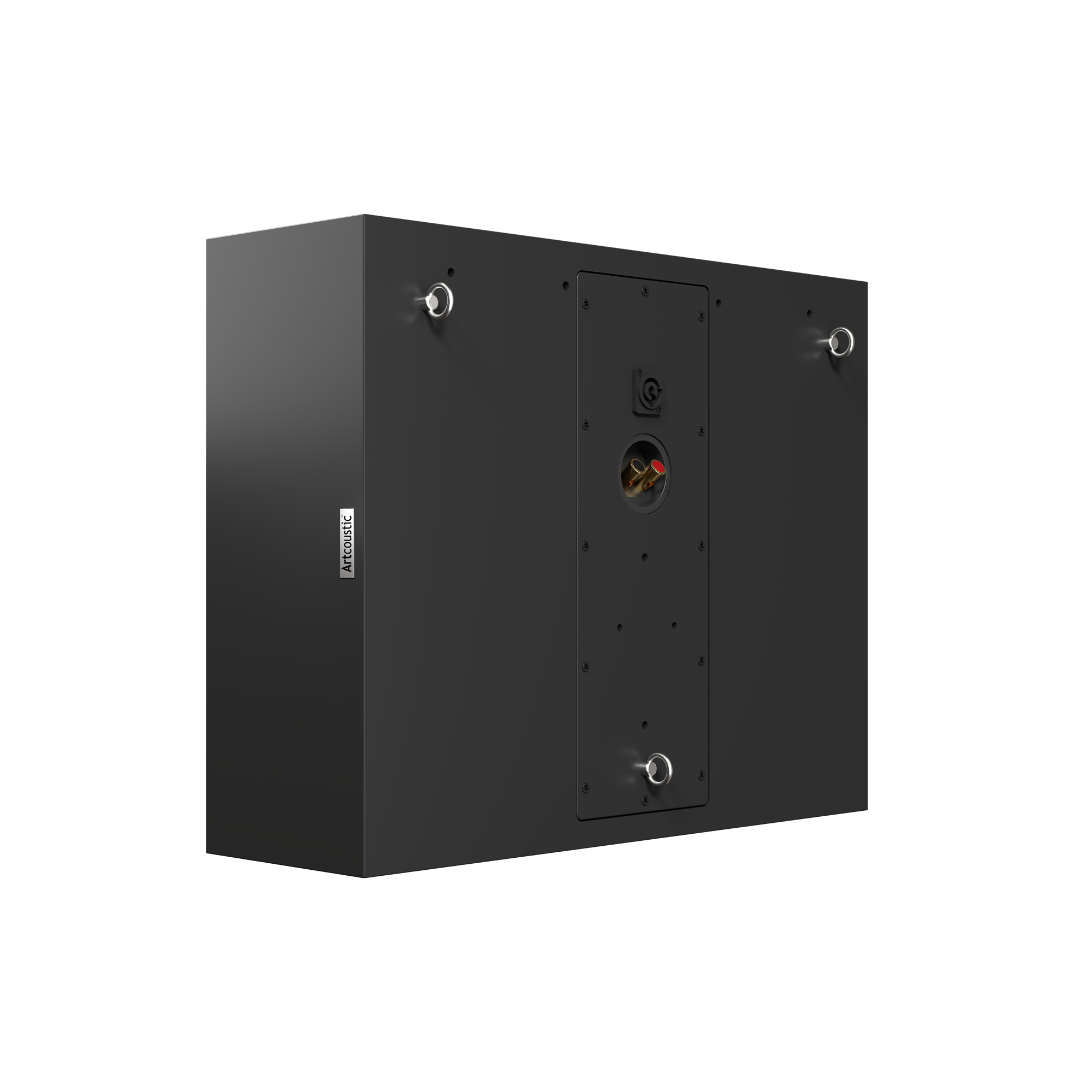

    Accessories Wall Mounts
    Weight 14.5 kg
    Dimensions H: 400 W: 500 D: 165 mm

    NB: Please download the user manual for the full specification.

  • Colour:

    Cabinet: Black, SL Satin

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch


The future of architectural cinema sound

About Spitfire Series

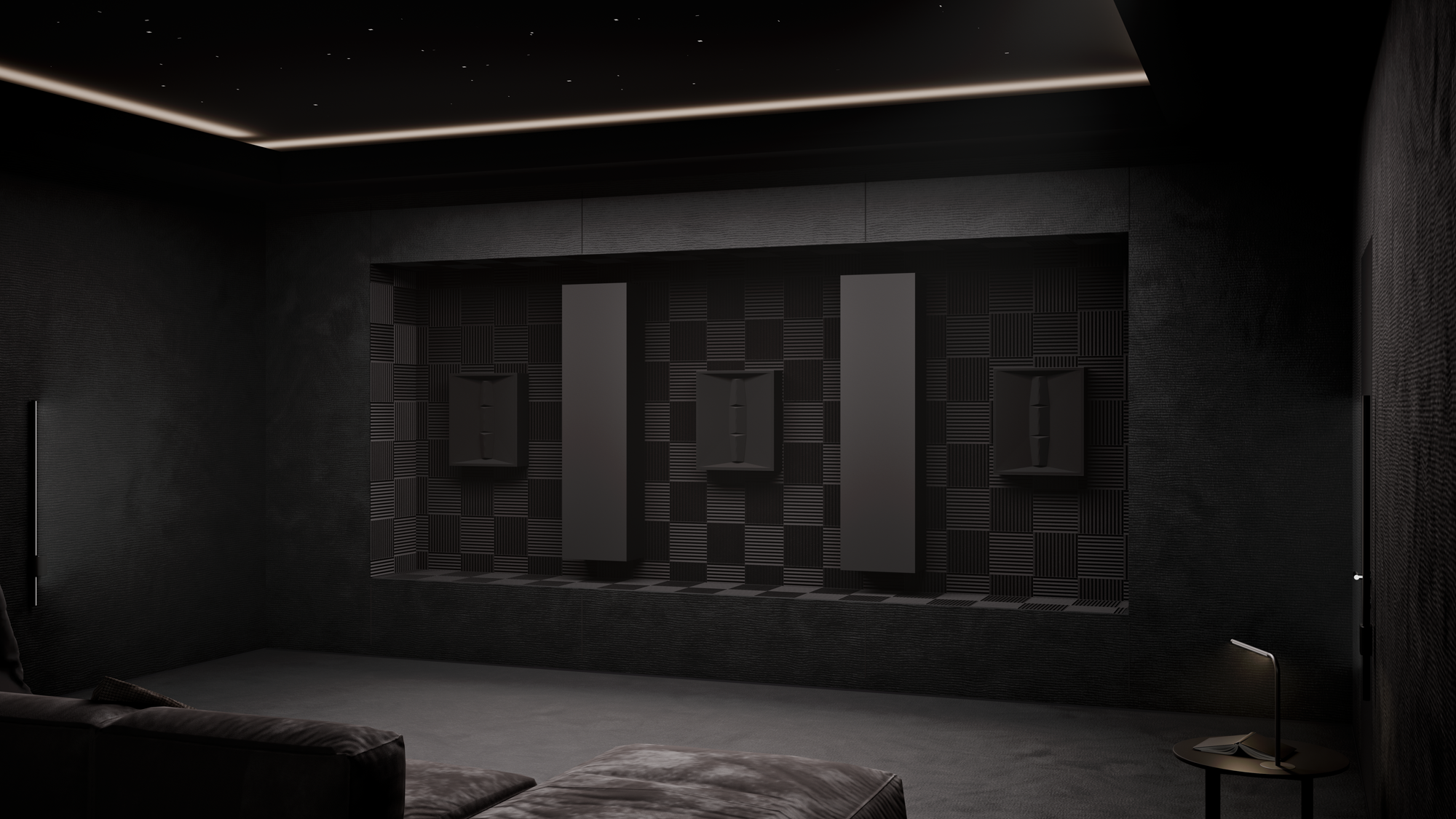

The Spitfire Series is Artcoustic’s dedicated cinema range of products. Its slimline profile, adjustable vertical and horizontal array, combined with a powerful and articulated performance, makes it the ideal choice for high-end cinema rooms and commercial installations, such as bars and clubs, and in general installations requiring high SPL. Use Artcoustic Spitfire Arrays for discrete professional applications.
