Specifications
-
Frequency range: 100 Hz – 20 kHz
Usable LF response 97 Hz (-6dB)
Coverage window: Horizontal 90 Vertical 45
Rated impedance: 4 Ohms
Sensitivity @ 1 watt: 100 dB
Power handling 180 W @ 38 Vrms
Maximum continuous SPL @ 1 meter: 118 dB Power draw 77 W 25 Vrms
Maximum acoustic peak SPL crest factor 6 @ 1 meter: 124 dB
Transducers LF – 3” woofer (x 6) HF – 1” Rind Radiator (x 2)
Enclosure Medium density Fiber board
Accessories Wall Mounts
Weight 5.0 kg
Dimensions H: 280 W: 280 D: 115 mmNB: Please download the user manual for the full specification.
-
Colour:
Cabinet: Black, SL Satin
-
Array efficiency. One enclosure. Cinematic control
About Spitfire Series

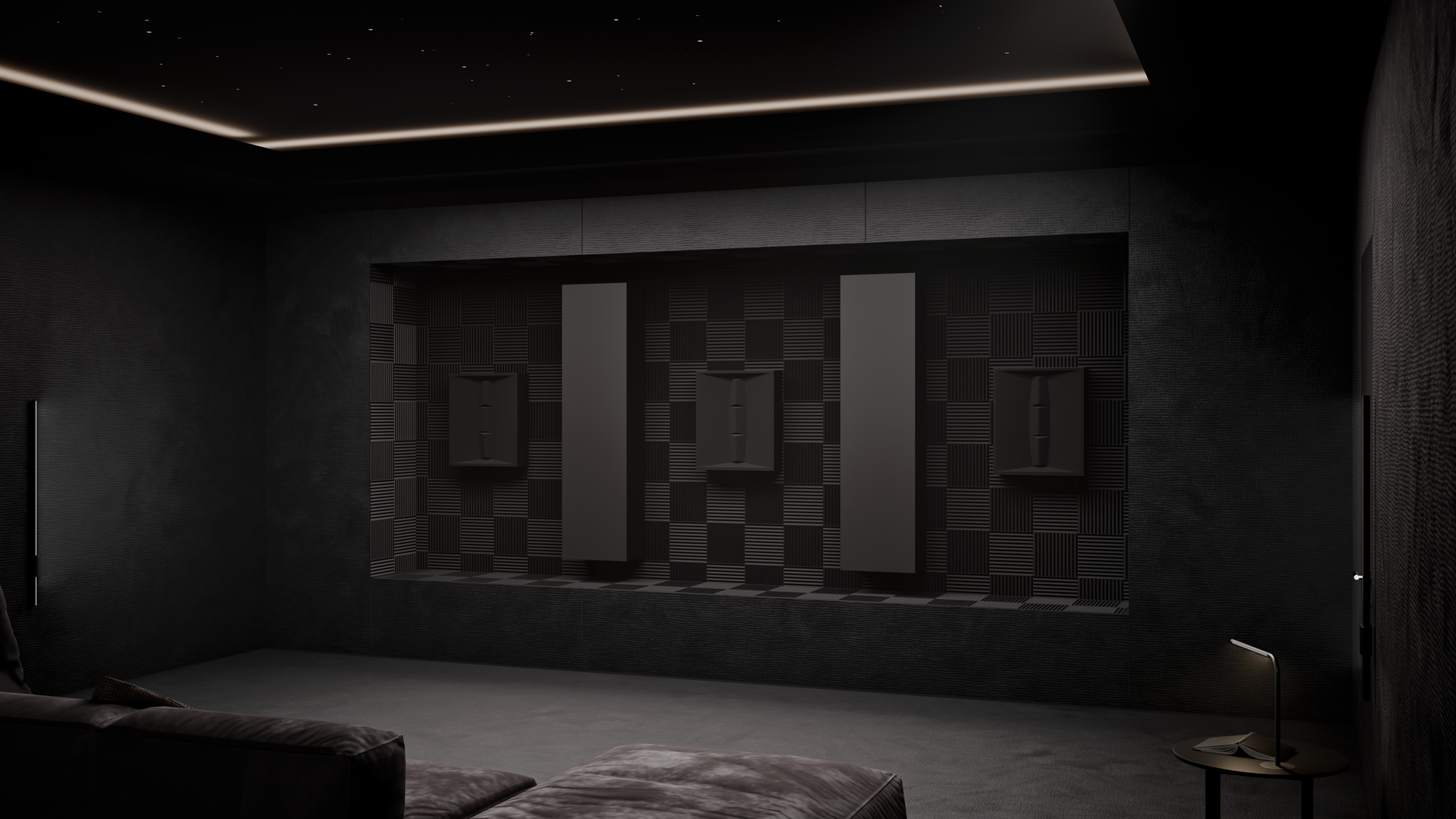

The Spitfire Series is Artcoustic’s dedicated cinema range of products. Its slimline profile, adjustable vertical and horizontal array, combined with a powerful and articulated performance, makes it the ideal choice for high-end cinema rooms and commercial installations, such as bars and clubs, and in general installations requiring high SPL. Use Artcoustic Spitfire Arrays for discrete professional applications.
Purpose-built for immersive cinema
Modern immersive soundtracks rely on precise overhead localisation. Yet many traditional ceiling loudspeakers disperse sound broadly throughout the room, reducing object definition and spatial accuracy.
The Spitfire Cloud has been developed specifically to solve this challenge.
Rather than employing a conventional coaxial design, the loudspeaker uses four high-performance 3-inch long-throw drivers alongside dual Artcoustic ring-radiator high-frequency units mounted on an angled acoustic baffle.
The result is a carefully controlled coverage pattern of approximately 90° horizontally by 45° vertically, directing acoustic energy towards the listening area instead of the surrounding ceiling.
This controlled directivity delivers significantly improved Atmos object localisation, greater spatial precision, enhanced dialogue intelligibility and a remarkably consistent listening experience across multiple seating positions.
Designed to integrate seamlessly with the wider Spitfire ecosystem, the Cloud maintains tonal consistency with Artcoustic screen and surround loudspeakers, creating a highly coherent immersive sound field capable of reference-level performance.
