SL Evolve 16-8

€0.00

The mid to high level configuration of our high sound pressure level and modular SL array. Perfect for serious audio systems and home  cinemas, delivering higher dynamics and output than the 12-6 version.

The SL Series has been subjected to several years of intensive testing and fine-tuning to deliver a truly unique and groundbreaking loudspeaker range.

The challenge was to create a loudspeaker capable of the dynamics and power of a horn-loaded design, but with the accuracy and quality of a Hi-Fi design.

FEATURES

  • Extended flat frequency response up to 40 kHz

  • Detailed and transparent sweet spot

  • A sophisticated and minimal cabinet design

  • High sensitivity and exceptional sound pressure level

  • Low distortion

  • Benchmark transient response

  • Guided directivity

  • Plug and play – easy to install approach

The mid to high level configuration of our high sound pressure level and modular SL array. Perfect for serious audio systems and home  cinemas, delivering higher dynamics and output than the 12-6 version.

The SL Series has been subjected to several years of intensive testing and fine-tuning to deliver a truly unique and groundbreaking loudspeaker range.

The challenge was to create a loudspeaker capable of the dynamics and power of a horn-loaded design, but with the accuracy and quality of a Hi-Fi design.

FEATURES

  • Extended flat frequency response up to 40 kHz

  • Detailed and transparent sweet spot

  • A sophisticated and minimal cabinet design

  • High sensitivity and exceptional sound pressure level

  • Low distortion

  • Benchmark transient response

  • Guided directivity

  • Plug and play – easy to install approach



Specifications

  • Frequency range 95 Hz – 20 kHz
    Usable LF response 92 Hz -6db
    Coverage window 90 - 30
    Rated impedance 8 Ohms
    Sensitivity @ 1 watt 103 dB
    Power handling 480 W
    Maximum continuous SPL @ 1 meter 126 dB
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 132 dB

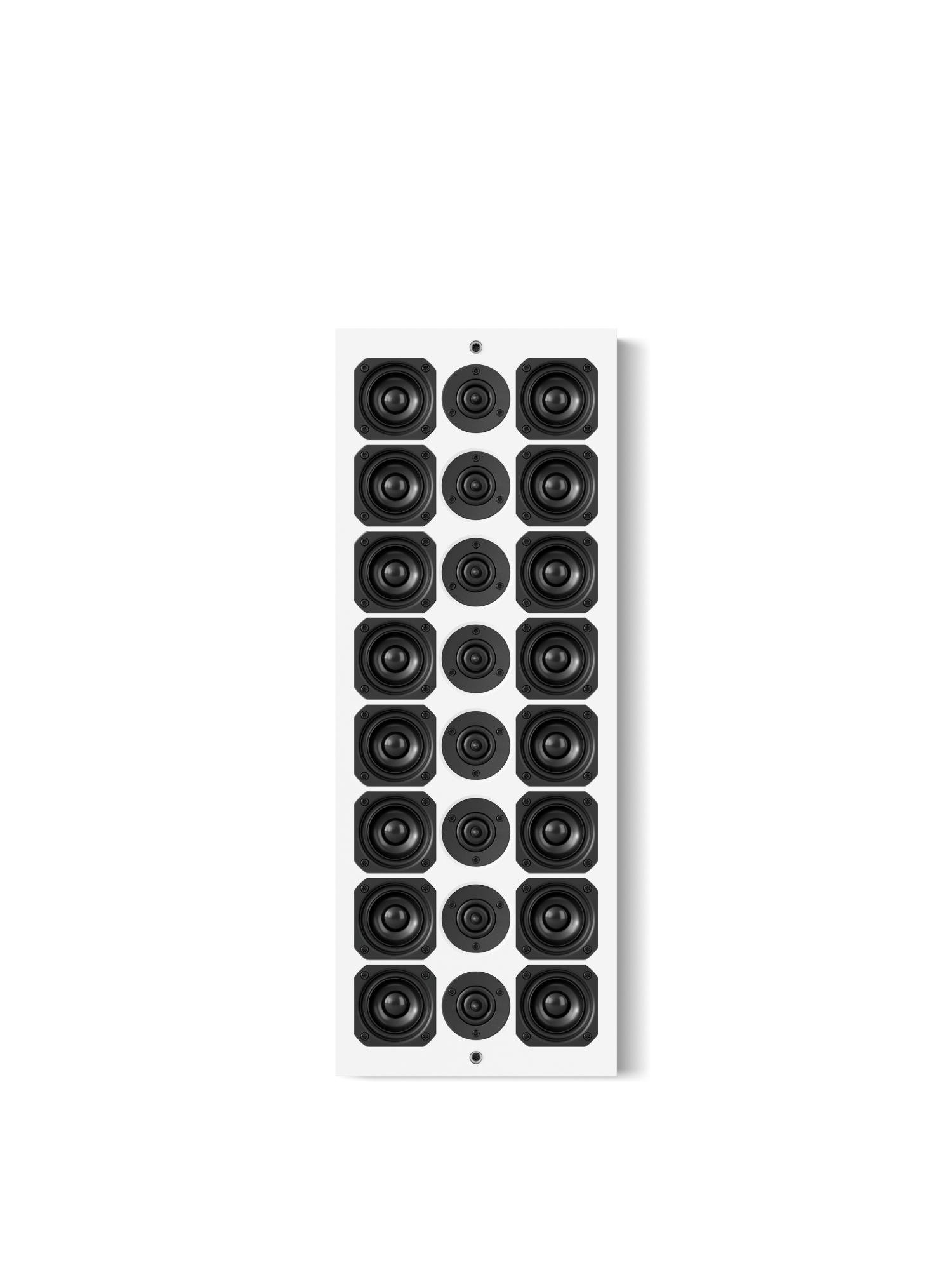

    Transducers FR – 3” woofer (x 16) HF 1.5” (x 8)
    Enclosure Medium density Fiber board
    Weight: 11.6 kg
    Dimensions: H: 716 W: 270 D: 72/85mm

    NB: Please download the user manual for the full specification.

  • Cabinet: RAL/NCS, SL Satin
    Screen: RAL/NCS

    Standard cabinet/screen colours are black/white

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch


projects featuring 16-8 configuration

About SL Series



The SL Series has been subjected to several years of intensive testing and fine-tuning to deliver a truly unique and groundbreaking loudspeaker range. The challenge was to create a loudspeaker capable of the dynamics and power of a horn-loaded design, but with the accuracy and quality of a HiFi design. The solution was to employ an array of world-class drive units to provide incredible efficiency, output and accuracy, whilst also staying true to Artcoustic’s signature design ethos.
