SL Elevate

€0.00

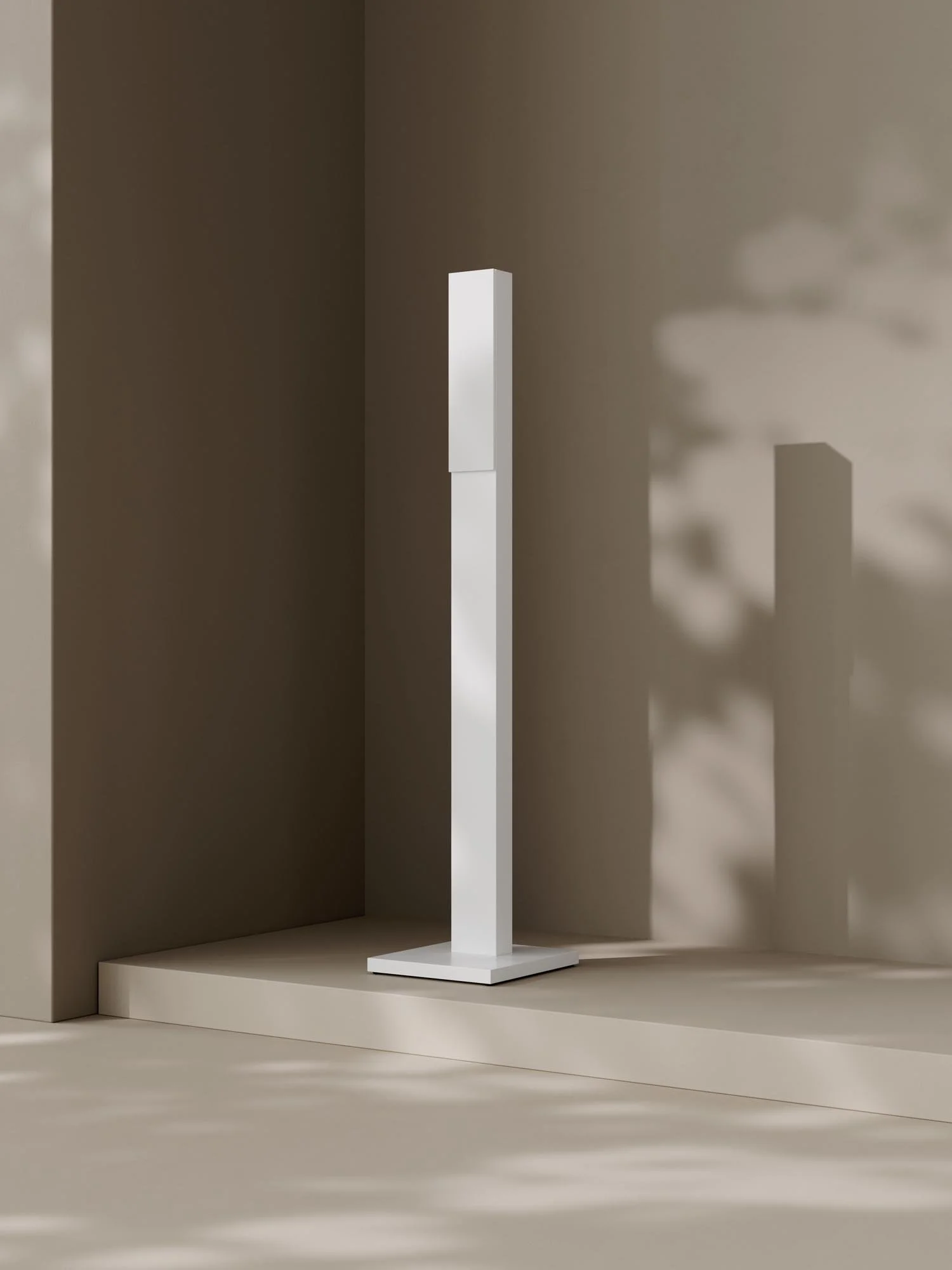

This optional floor-standing or wall-hanging multi-purpose monitor shares many characteristics with the other models in the Artcoustic SL range.

SL Elevate is a flexible loudspeaker, designed for use in smaller rooms for home cinema, as well as for multiroom applications. Furthermore, this model has been optimised for Dolby Atmos horizontal listening height, making it the perfect choice for rooms without side or rear walls.

The SL Elevate is designed to work in high-quality two channel music systems and multi-channel home cinemas in conjunction with at least one subwoofer.

Features:

  • Optional floor standing or wall hanging

  • Very low distortion

  • Very low power consumption

  • Wide frequency response 55 Hz to 40 kHz

  • Fast, easy and simple installation

  • Suitable for 2 channels hifi systems and home cinemas

  • Dolby Atmos horizontal dispersion optimised

  • Suitable for a wide range of application

  • Ultra-slim aesthetically pleasing cabinet design

This optional floor-standing or wall-hanging multi-purpose monitor shares many characteristics with the other models in the Artcoustic SL range.

SL Elevate is a flexible loudspeaker, designed for use in smaller rooms for home cinema, as well as for multiroom applications. Furthermore, this model has been optimised for Dolby Atmos horizontal listening height, making it the perfect choice for rooms without side or rear walls.

The SL Elevate is designed to work in high-quality two channel music systems and multi-channel home cinemas in conjunction with at least one subwoofer.

Features:

  • Optional floor standing or wall hanging

  • Very low distortion

  • Very low power consumption

  • Wide frequency response 55 Hz to 40 kHz

  • Fast, easy and simple installation

  • Suitable for 2 channels hifi systems and home cinemas

  • Dolby Atmos horizontal dispersion optimised

  • Suitable for a wide range of application

  • Ultra-slim aesthetically pleasing cabinet design




Specifications

  • Frequency range 80 Hz – 40 kHz
    Usable LF response 77 Hz -6db
    Coverage window 90 - 70
    Rated impedance 4 Ohms
    Sensitivity @ 1 watt 96 dB
    Power handling 60 W @ 22 Vrms
    Maximum continuous SPL @ 1 meter 103 dB Power draw 3 W 5 Vrms
    Maximum acoustic peak SPL crest factor 6 @ 1 meter 109 dB
    Transducers FR – 3” woofer (x 2) HF 1.5” (x 1)
    Enclosure Medium density Fiber board
    Weight: 6 kg
    Dimensions: H: 1285 W: 270 D: 300 mm (with base plate)
    Dimensions: H: 1261 W: 100 D: 55 mm (without base plate)

    NB: Please download the user manual for the full specification.

  • Cabinet: RAL/NCS, SL Satin
    Screen: RAL/NCS

    Standard cabinet/screen colours are black/white

  • 2D / 3D Files
    User Manual
    Product Sheet
    Images

Get in touch


Projects featuring SL Elevate

About SL Series



The SL Series has been subjected to several years of intensive testing and fine-tuning to deliver a truly unique and groundbreaking loudspeaker range. The challenge was to create a loudspeaker capable of the dynamics and power of a horn-loaded design, but with the accuracy and quality of a HiFi design. The solution was to employ an array of world-class drive units to provide incredible efficiency, output and accuracy, whilst also staying true to Artcoustic’s signature design ethos.
